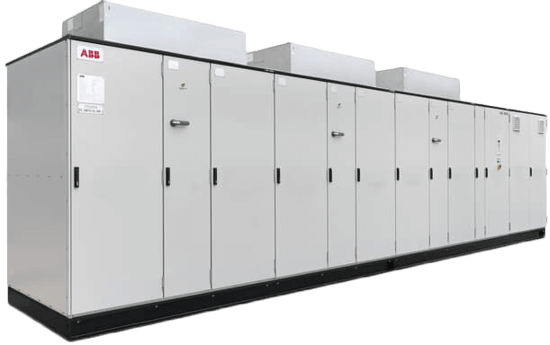

ACS5000 Medium Voltage Drive
Manufacturer: ABB
Images are representations only.
ACS5000 Medium Voltage Drive
Manufacturer: ABBThe ACS5000 medium voltage drive effortlessly controls your high power applications such as compressors, pumps and fans.
It conforms to operations in many fields, but is especially suited for the chemical, oil, gas and power generation industries due to its robust design.
The drive comes with various industry-specific features, which integrate seamlessly with your system and increase productivity of your processes.
Due to the ACS5000`s enhanced arc resistant design, you can be sure of highest safety in your day to day operation for your personnel and equipment.
Features- Highest level of personnel safety due to arc fault resistant design with fast fault elimination
- High reliability due to proven design and low parts count
- High compatibility with standard motors due to multilevel topology
- Fuseless design
- Constant network power factor across the whole speed range
- Direct Torque Control (DTC)
- Industry specific features
- Power range 3.0 to 36.0 MW, up to 13.8 kV
Specifications
Manufacturer
Voltage
- Input to diode rectifier: 1,920-1,980 V, 3,700-3,960 V
- Input to integrated transformer: 4.16-13.8 kV
- Output: 6.0-6.9 kV (4.0-4.16 kV with derating)
Frequency
- Input: 50/60 Hz, Output: 0 to 250 Hz
Power
- Output: 2,000 to 36,000 kW
Environmental Protection
- IP21
- IP42
- IP54
Altitude
- 2000 m.a.s.l. (Higher with derating)
Ambient Temperature
- Air: 1° to 40° C (Lower and Higher with derating)
Liquid Temperature
- External Cooling: 5° to 32° C (Lower and Higher with derating)
Cooling Type
- Air, Liquid
Standard
- EN, IEC, CE, (Optional CSA)
Noise
- Liquid-Cooled: ≤ 75 dB(A)
- Air-Cooled: ≤ 85 dB(A)
Displaying prices & availability for Ohio, United States in CAD. Change location.
Models matching criteria: 180
- Product Type - Air-Cooled
- Voltage - 6000 V
- Current Rating - 290 A
- Input Transformer - For External Trans Former
In Stock
Does not ship to OH, United States
- Product Type - Air-Cooled
- Voltage - 6000 V
- Current Rating - 355 A
- Input Transformer - For External Trans Former
In Stock
Does not ship to OH, United States
- Product Type - Air-Cooled
- Voltage - 6000 V
- Current Rating - 585 A
- Input Transformer - For External Trans Former
In Stock
Does not ship to OH, United States
- Product Type - Air-Cooled
- Voltage - 6000 V
- Current Rating - 315 A
- Input Transformer - For Integrated Trans Former
In Stock
Does not ship to OH, United States
- Product Type - Liquid-Cooled
- Voltage - 6000 V
- Current Rating - 840 A
- Converter Type - For External Trans Former
- Rectifier Type - 18-Pulse
In Stock
Does not ship to OH, United States
- Product Type - Air-Cooled
- Voltage - 6000 V
- Current Rating - 400 A
- Input Transformer - For External Trans Former
In Stock
Does not ship to OH, United States
- Product Type - Air-Cooled
- Voltage - 6000 V
- Current Rating - 510 A
- Input Transformer - For Integrated Trans Former
In Stock
Does not ship to OH, United States
- Product Type - Air-Cooled
- Voltage - 6000 V
- Current Rating - 170 A
- Input Transformer - For Integrated Trans Former
In Stock
Does not ship to OH, United States
- Product Type - Air-Cooled
- Voltage - 6000 V
- Current Rating - 290 A
- Input Transformer - For Integrated Trans Former
In Stock
Does not ship to OH, United States
- Product Type - Air-Cooled
- Voltage - 6000 V
- Current Rating - 240 A
- Input Transformer - For External Trans Former
In Stock
Does not ship to OH, United States
- Product Type - Air-Cooled
- Voltage - 6000 V
- Current Rating - 210 A
- Input Transformer - For Integrated Trans Former
In Stock
Does not ship to OH, United States
- Product Type - Liquid-Cooled
- Voltage - 6000 V
- Current Rating - 670 A
- Converter Type - For External Trans Former
- Rectifier Type - 18-Pulse
In Stock
Does not ship to OH, United States
- Product Type - Air-Cooled
- Voltage - 6000 V
- Current Rating - 210 A
- Input Transformer - For External Trans Former
In Stock
Does not ship to OH, United States
- Product Type - Air-Cooled
- Voltage - 6000 V
- Current Rating - 400 A
- Input Transformer - For Integrated Trans Former
In Stock
Does not ship to OH, United States
- Product Type - Air-Cooled
- Voltage - 6000 V
- Current Rating - 585 A
- Input Transformer - For Integrated Trans Former
In Stock
Does not ship to OH, United States
- Product Type - Liquid-Cooled
- Voltage - 6000 V
- Current Rating - 670 A
- Converter Type - For Integrated Trans Former
- Rectifier Type - 36-Pulse
In Stock
Does not ship to OH, United States
- Product Type - Air-Cooled
- Voltage - 6000 V
- Current Rating - 170 A
- Input Transformer - For External Trans Former
In Stock
Does not ship to OH, United States
- Product Type - Air-Cooled
- Voltage - 6000 V
- Current Rating - 510 A
- Input Transformer - For External Trans Former
In Stock
Does not ship to OH, United States
- Product Type - Air-Cooled
- Voltage - 6000 V
- Current Rating - 355 A
- Input Transformer - For Integrated Trans Former
In Stock
Does not ship to OH, United States
- Product Type - Air-Cooled
- Voltage - 6000 V
- Current Rating - 315 A
- Input Transformer - For External Trans Former
In Stock
Does not ship to OH, United States
- Product Type - Air-Cooled
- Voltage - 6000 V
- Current Rating - 240 A
- Input Transformer - For Integrated Trans Former
In Stock
Does not ship to OH, United States
- Product Type - Liquid-Cooled
- Voltage - 6000 V
- Current Rating - 670 A
- Converter Type - For Integrated Trans Former
- Rectifier Type - 18-Pulse
In Stock
Does not ship to OH, United States
- Product Type - Air-Cooled
- Voltage - 6000 V
- Current Rating - 440 A
- Input Transformer - For Integrated Trans Former
In Stock
Does not ship to OH, United States
- Product Type - Liquid-Cooled
- Voltage - 6000 V
- Current Rating - 670 A
- Converter Type - For External Trans Former
- Rectifier Type - 36-Pulse
In Stock
Does not ship to OH, United States
- Product Type - Air-Cooled
- Voltage - 6000 V
- Current Rating - 440 A
- Input Transformer - For External Trans Former
In Stock
Does not ship to OH, United States
- Product Type - Liquid-Cooled
- Voltage - 6000 V
- Current Rating - 840 A
- Converter Type - For External Trans Former
- Rectifier Type - 36-Pulse
Out of Stock
Does not ship to OH, United States
- Product Type - Liquid-Cooled
- Voltage - 6000 V
- Current Rating - 1500 A
- Converter Type - For External Trans Former
- Rectifier Type - 36-Pulse
Out of Stock
Does not ship to OH, United States
- Product Type - Air-Cooled
- Voltage - 6600 V
- Current Rating - 585 A
- Input Transformer - For External Trans Former
Out of Stock
Does not ship to OH, United States
- Product Type - Air-Cooled
- Voltage - 6600 V
- Current Rating - 440 A
- Input Transformer - For External Trans Former
Out of Stock
Does not ship to OH, United States
- Product Type - Liquid-Cooled
- Voltage - 6600 V
- Current Rating - 1750 A
- Rectifier Type - 36-Pulse
Out of Stock
Does not ship to OH, United States
- Product Type - Air-Cooled
- Voltage - 6600 V
- Current Rating - 210 A
- Input Transformer - For Integrated Trans Former
Out of Stock
Does not ship to OH, United States
- Product Type - Liquid-Cooled
- Voltage - 6000 V
- Current Rating - 1500 A
- Converter Type - For Integrated Trans Former
- Rectifier Type - 18-Pulse
Out of Stock
Does not ship to OH, United States
- Product Type - Liquid-Cooled
- Voltage - 6900 V
- Current Rating - 2000 A
- Rectifier Type - 36-Pulse
Out of Stock
Does not ship to OH, United States
- Product Type - Liquid-Cooled
- Voltage - 6900 V
- Current Rating - 1000 A
- Converter Type - For External Trans Former
- Rectifier Type - 18-Pulse
Out of Stock
Does not ship to OH, United States
- Product Type - Liquid-Cooled
- Voltage - 6600 V
- Current Rating - 670 A
- Converter Type - For Integrated Trans Former
- Rectifier Type - 36-Pulse
Out of Stock
Does not ship to OH, United States
- Product Type - Air-Cooled
- Voltage - 6900 V
- Current Rating - 585 A
- Input Transformer - For Integrated Trans Former
Out of Stock
Does not ship to OH, United States
- Product Type - Air-Cooled
- Voltage - 6900 V
- Current Rating - 400 A
- Input Transformer - For Integrated Trans Former
Out of Stock
Does not ship to OH, United States
- Product Type - Air-Cooled
- Voltage - 6600 V
- Current Rating - 315 A
- Input Transformer - For Integrated Trans Former
Out of Stock
Does not ship to OH, United States
- Product Type - Liquid-Cooled
- Voltage - 6000 V
- Current Rating - 1750 A
- Rectifier Type - 36-Pulse
Out of Stock
Does not ship to OH, United States
- Product Type - Liquid-Cooled
- Voltage - 6600 V
- Current Rating - 1100 A
- Converter Type - For External Trans Former
- Rectifier Type - 18-Pulse
Out of Stock
Does not ship to OH, United States
