Spectra* Series Power Panelboards
Manufacturer: ABB | GE
Images are representations only.

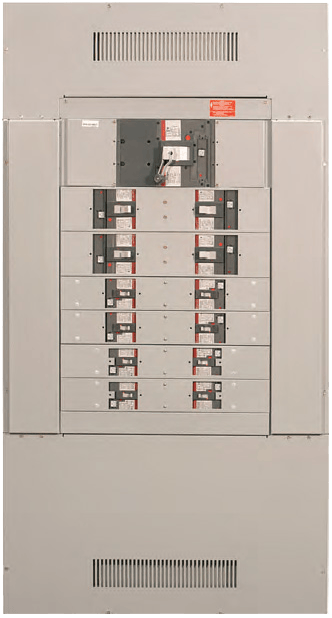

Spectra* Series Power Panelboards
Manufacturer: ABB | GEOur Power Panelboards offer plug-in and bolt-on style interiors for use in all Spectra Series Power Panelboard applications.
Spectra Plug-In interiors are designed for use with either fusible switches or molded case circuit breakers. A combination of the devices can be used on a common interior.
Spectra Bolt-On interiors are designed for use with circuit breakers only. Main or branch devices (fusible switch or circuit breaker), as well as lugs only, can be installed at the factory or at the construction site providing application flexibility.
Features- Main bus, 250-1200 amp, copper or aluminum
- Wide, easy-to-install galvanized enclosures with removable endwalls
- 5 box widths simplify installation and design
- Enclosures available in NEMA Type 1, Type 3R/12, Type 4/4X
- Integrated TVSS for maximum surge protection
- Optional door-in-door or front-hinged-to-box construction
- Reduced density copper or aluminum bus
- 200% rated neutrals available
- Vertically mounted main circuit breakers available
- Branch-bus direct connection
- Captive hardware on branch breakers
- Front accessible main lug assembly
- Process control unit in plug-in style
- Spectra MVT breaker option for main/branch breakers
- 100% rated breakers available
- Individual breaker cover plates
Specifications
Manufacturer
Maximum Voltage
- 600 V, 1P3W, 3P4W
Maximum Amperage
- 1200 A
Fully Rated
- 200 kAIC at 480Y/277 V
Series Rated
- 200 kAIC at 480Y/277 V
Mains
- 250A-1200A MCB (SF, SG, SK, FG)
Breakers (Bolt-On)
- Double Branch SE, SF, SG, FG FB, TEY, TEB, TQD Breakers Center-Mounted SK Breakers
Breakers / Switches (Plug-In)
- FB, TEY, TEB, TQD Breakers Center-Mounted SK Breakers 30A-1200A Fused Switches (R, J, H, K, T Fuses)
