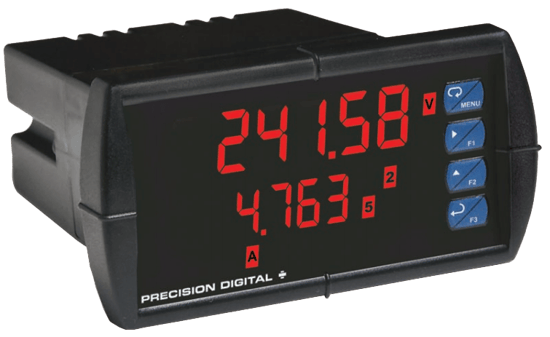

The PROVU PD6400 is a True RMS multipurpose, easy to use high voltage and current input meter ideal for measuring direct voltage and current or the output from voltage shunts and current transformers. It has one 0-300 VAC or VDC voltage input and one 0-5 AAC or ADC current input.

The meter may be used with a single voltage or current input, or to measure both simultaneously. A math channel P calculates apparent power as the product of the voltage and current inputs.

The PD6400 can display voltage, current, and apparent power. The dual line display can show any two parameters simultaneously, or alternate between any parameters as well as their programmable units and tags.

A fully loaded PD6400 meter has the following: four SPDT relays and a 4-20 mA output.

The PD6400 capabilities may be enhanced by adding the following external expansion modules: four SPST relays; creating an eight-relay meter, two digital I/O modules with four inputs and four outputs each, serial communication adapters for use with MeterView Pro or Modbus RTU, and a dual 4-20 mA expansion module; for a total of three 4-20 mA analog outputs.

Precision Digital offers a line of split core AC Current transformers that can be used with the PD6400 meter to measure AC current up to 1000 AAC.

• 1/8 DIN Digital Panel Meter with NEMA 4X, IP65 Front
• (1) High Voltage and (1) High Current Input
• True RMS AC with Crest Factor of 2 at Full Scale
• 0-300 VAC or VDC Voltage Input
• 0-5 AAC or ADC Current Input
• Multiplication for Apparent Power Calculation
• Dual-Line 6-Digit Display, 0.6" (15 mm) & 0.46" (12 mm)
• 2 or 4 Relays with Interlocking Capability + Isolated 4-20 mA Output Options
• Free PC-Based MeterView Pro USB Programming Software
• No Assembly Required
• Optional SunBright Display Models for Outdoor Applications
• Operating Temperature Range: -40 to 65°C (-40 to 150°F)
• UL & C-UL Listed. E160849; 508 Industrial Control Equipment
• Input Power Options Include 85-265 VAC or 12-24 VDC
• Programmable Display, Function Keys & Digital Input
• External 4-Relay, Dual 4-20 mA Outputs & Digital I/O Expansion Modules
• RS-232 & RS-485 Serial Communication Options with Modbus RTU
• Light / Horn & Reset Button Accessory
• Split Core AC Current Transformers Up to 1000 A AC Available
• Control Station Accessory For Remote Operation of ProVu
