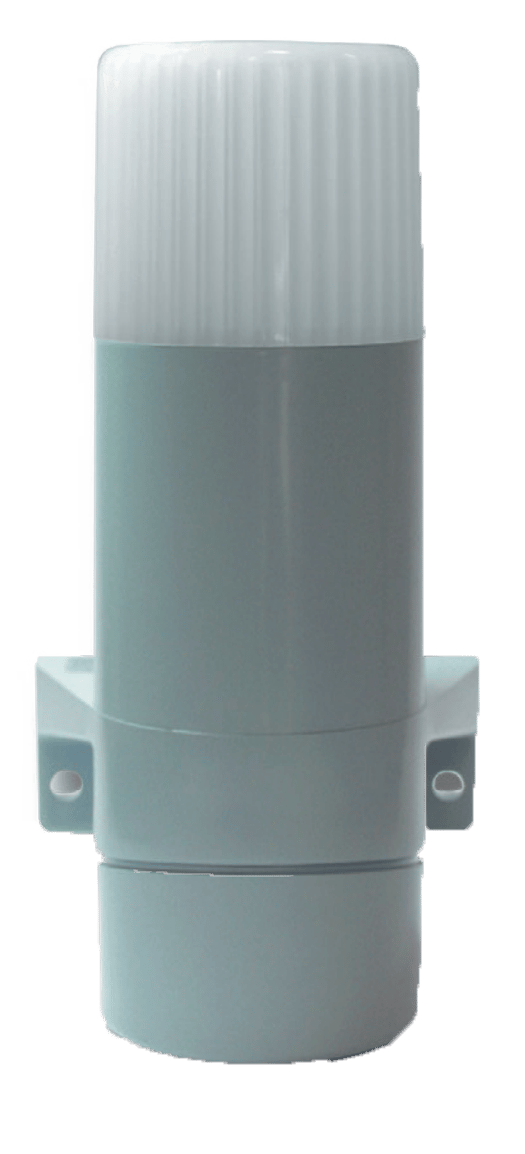

Weatherproof Multi Colour LED Light AvtiveLine GH2.png
Images are representations only.

Weatherproof Multi Colour LED Light AvtiveLine GH2

Manufacturer: EATON | FHF
Request a Quote
Favorite
The ActiveLine GH2 Multicolour Light for wall mounting is an optical signaling device for universal use.

The possible signaling colours green, amber, red, blue and white are applicable for a number of different signaling purposes. All colours are all shown in one single light element.

Each colour can be preset to continuous light, blinking light or strobe light. The light is generated by use of light-emitting diodes.

The plastic housing is made of impact-resistant thermoplastic and the cap consists of impact-resistant polycarbonate. The cable is led into the housing through a self-sealing grommet M16 x 1.5.

The arrangement of the fastening bar allows for a surface or flush-mounted wiring.
Features
  • 5 different signal colours in just one lamp
  • 3 signal modes (strobe light, blinking light, continuous light)
  • Space-saving installation
  • Extremely long life-cycle thanks to LED technology
  • Low energy consumption

Specifications

Manufacturer

Housing

  • Thermoplastic

Cap

  • Polycarbonat

Ingress protection

  • IP 54 according to EN 60529

Protection class

  • III

Connection terminals

  • Terminal capacity: 1.5 mm²single or fine-wire

Cable gland

  • 1 x self-sealing grommet M20 x 1.5

Operating modes

  • Continuous light one colour the colour is permanently on multiple colours 990 ms switched on per colour
  • Blinking light one colour 220 ms switched on, 275 ms switched off multiple colours 2 times blinking per colour
  • Strobe light one colour 55 ms switched on, 440 ms switched off multiple colours 4 flashes per colour
  • The colours always change in the sequence green – amber – red – blue – white

Operating voltage

  • 24 VDC, 230 VAC (voltage between colour connection and ground connection)

Operating conditions

  • Indoors and outdoors under protective roof

Operating position

  • Any

Temperature range

  • Operation -25 °C to +60 °C
  • Storage -40 °C to +70 °C

Weight

  • Approx. 0.3 kg

Operating voltage (voltage between colour connections and “N“ connection)

  • AC variants 230 VAC, 50 to 60 Hz
  • DC variants 24 VDC

Tolerance

  • ± 20 %

Current consumption colour (white) on

  • AC variants < 50 mA
  • DC variants < 135 mA

Power consumption

  • AC variants < 12 W
  • DC variants < 4 W
