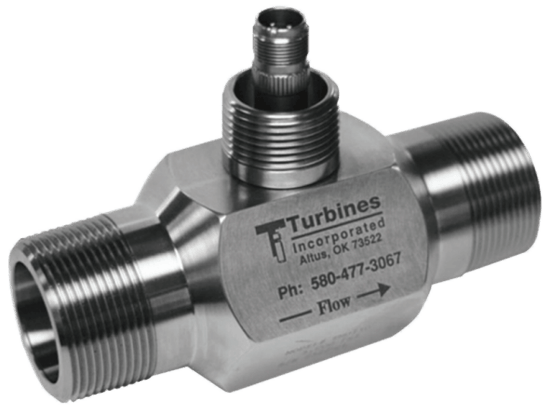

TM Series Turbine Flow Meter

Manufacturer: Turbines, Inc.

TM Series Turbine Flow Meter

Manufacturer: Turbines, Inc.
The TM Series features our same ruggedized, stainless steel construction with CD4MCu and/or 416 stainless steel rotors, line sizes from 3/8 inch through 10.0 inch to fit various application requirements. The TM Series are designed specifically for liquid applications and can be configured with a variety of end arrangements. End connection is NPT threaded standard, however victaulic, flanged, or sanitary ends are available.
Features
  • Accuracy over range: +/- 1.0% except TM0038: +/- 2.0%
  • Repeatability over flow range: +/- 0.10%
  • Operating temperature: -100° to +300° F

Specifications

Manufacturer

Accuracy

  • ± 1.0 % Over Flow Range (Except TM0038 which is ± 2.0 %)

Repeatability

  • 0.1 % Over Flow Range

Operating Temperature

  • 100° to +300° F

Connection

  • Flanged
  • Victaulic® (Grooved)
  • Threaded

Materials

  • Meter Body: 316 Stainless Steel
  • Rotor Support: 316 Stainless Steel
  • Meter Rotor: CD4MCu/416 Stainless Steel
  • Rotor Shaft: Tungsten Carbide
  • Sleeve Bearings: Tungsten Carbide

Certifications & Approvals

  • ISO 9001
