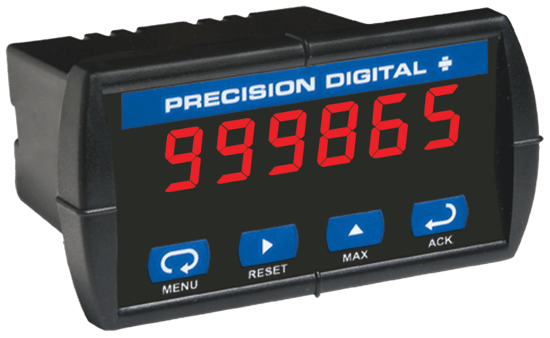

PD865 Snooper Modbus Digital Panel Meter
Manufacturer: Precision DigitalPD865 Snooper Modbus Digital Panel Meter
Manufacturer: Precision DigitalThe Snooper PD865 is an 1/8 DIN Modbus® meter that can be programmed as a Modbus® RTU master, slave, or snooper.
In snooper mode, the PD865 listens to the Modbus traffic and displays a process variable being transmitted on the bus.
As a master, the Snooper can read up to 8 Modbus variables; it will display one and make the other variables available for other Snoopers to display in snooper mode.
As a slave, a Modbus variable may be written to the PD865 by a Modbus master.
The PD865 is available with two (2) relays, 4-20 mA analog output, and multi-pump alternation control.
- Snooper Mode: Listening for the PV you want
- Proxy Polling Mode: Poll up to 8 PVs
- RS-485 Modbus® RTU input
- Six full digits 999,999
- Master, Slave, or Snooper mode
- Sunlight readable LED display
- Scale in engineering units
- 16-point linearization
- Square root & programmable exponent
- Exact display of input data
- 4-20 mA analog output option (Modbus to 4-20 mA)
- Two Form A relays standard
- Two Form C relays option
- Up to four pump alternation control
- Universal power supply
Specifications
Manufacturer
Input/Output
- Modbus RTU RS-485
Display
- 0.56" (14.2 mm) red LED, 6 digits
- Displays from -199999 to 999999, automatic leading zero blanking
Display Intensity
- Display Intensity: Eight user selectable intensity levels
Front Panel
- NEMA 4X, IP65; panel gasket provided
Programming Methods
- Four front panel buttons or via Modbus registers (Slave mode only)
Display Update Rate
- Master: 10/sec to 1 every 25.5 seconds
- Slave and Snooper: Dependent on master device (PLC, DCS, RTU, etc)
Power Options
- 85-265 VAC, 50/60 Hz; 90-265 VDC, 20 W max
- 12-36 VDC; 12-24 VAC, 6 W max
Isolation
- 4 kV Input/Output-to-Power-Line
- 500 V input-to-output or output-to-24 VDC supply
Enclosure
- 1/8 DIN, high impact plastic, UL 94V-0, color: gray
Connections
- Removable screw terminals accept 12 to 22 AWG
Communication
- Modbus RTU
- RS-485
Operating Temperature
- -40° to 65° C (-40° to 150° F)
Storage Temperature
- -40° to 85° C (-40° to 185° F)
Relative Humidity
- 0 to 90% non-condensing
Weight
- 9.7 oz (275 g) (including options)
