PD560 Series NOVA Temperature Meter
Manufacturer: Precision Digital
Images are representations only.

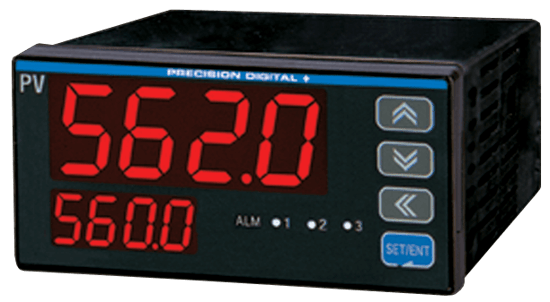

PD560 Series NOVA Temperature Meter
Manufacturer: Precision DigitalThe Nova PD560 is a digital meter that accepts a wide variety of process and temperature inputs and is available in 1/8 and 1/4 DIN sizes.
Its universal input accepts thermocouple, RTD, and voltage inputs, and it can be easily configured for a 4-20 mA input.
It is available with up to three (3) relays, a 4-20 mA analog outputs, two (2) digital inputs, and an RS485 serial communication option which includes protocols for master/slave set point control, Modbus® ASCII and RTU, as well as PC software.
Features- Thermocouple, RTD, & Process Inputs
- Two Ramp & Soak Programs, 15 segments each
- Universal Power Supply 100-240 VAC
- Up to 3 Relays & 2 Analog Outputs
- Digital Input Program Operation
- RS-485 Serial Communications Option
- Modbus® RTU/ASCII Communications
- Free Operating & Data Logging Software
- IP55 & IP65 Fronts
- 1/16, 3/16, 1/8, 1/4 DIN Sizes
- 3 Year Warranty
Specifications
Manufacturer
Operating Temperature
- 10° to 50° C (50° to 122° F)
Approvals & Certifications
- CE
- UL
Cold Junction Reference
- Automatic
- Off
Storage Temperature
- -40° to 85° C (-40° to 185° F)
Humidity
- 20 to 90% RH Non-Condensing
Display
- -1999 to 9999
- Dual 4-Digit Display
- Red LEDs
Power Supply
- 100-240 Vac, 50/60 Hz, 10 W
Environmental Protection
- IP55
- IP65
Enclosure, Body Material
- Impact-Resistant Plastic
Isolation
- 2,300 V Input/Output-to-Powerline
- 4 kV Relay Output to Input/Output / Powerline
