PD578 Controller
Manufacturer: Precision Digital
Images are representations only.

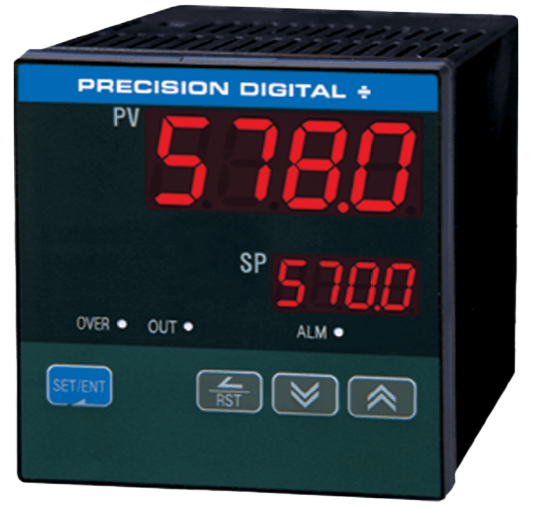

PD578 Controller
Manufacturer: Precision DigitalThe PD570 Series of Limit Controllers come equipped with a limit control latching relay, alarm relay, and a 4-20 mA retransmitting output.
These standard features make the Limit Controller an excellent process monitoring tool.
Serial communications for Modbus or PC monitoring software expands the Limit Controller’s capability.
Features- Thermocouple, RTD, & Process Input
- Universal Power supply 100-240 Vac
- Latching relay High or Low Limit control
- 1 Latching relay & 1 Alarm relay
- retransmitting 4-20 mA output
- RS-485 serial communications option
- Modbus® RTU/ASCII communications
- Free operating & Data Logging software
- IP55 & IP65 Fronts
Specifications
Manufacturer
Approvals & Certifications
- CE
- UL
Cold Junction Reference
- Automatic
- Off
Display
- Dual 4-Digit Display
- Red LEDs
Enclosure, Body Material
- Impact-Resistant Plastic
Environmental Protection
- IP55
- IP65
Humidity
- 20 to 90 % Non to Condensing
Isolation
- 2300 V Input/Output-to-Powerline
- 4 kV Relay Output to Input/Output / Powerline
Mounting
- 1/4” DIN
Operating Temperature
- 10° to 50° C (50° to 122° F)
Operating Voltages
- 50/60 Hz
Power
- 10 W
Power Supply
- 100 to 240 Vac
Storage Temperature
- -40° to 85° C (-40° to 185° F)
