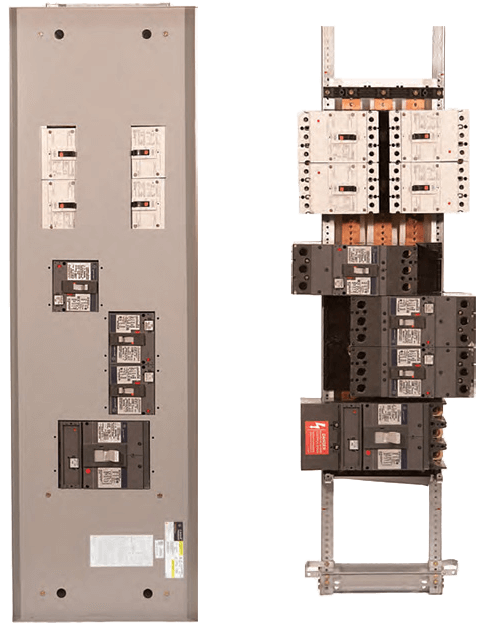

A-Series* II Powerpanel

Manufacturer: ABB | GE
Images are representations only.

A-Series* II Powerpanel

Manufacturer: ABB | GE
Request a Quote
Favorite
The A-Series II Powerpanel is the right product for commercial construction.

From design through manufacture and delivery, GE commits its considerable resources to giving our panelboard customers the products they need, when they need them.
Features
  • Symmetrical design, no required top or bottom mountings
  • Single-piece deadfront – no filler plates needed
  • Smaller, lighter panel than Spectra Series panelboards
  • Easy-to-install galvanized enclosures with removable endwalls
  • Ready-to-install hinged trim options
  • Branch-bus direct connection
  • Up to 600A breaker mounted as a branch device
  • Deeper (8"), wider (30") A-Series box to accommodate larger wire sizes
  • Double branched 150A (ED/SE) and 225A (QD) breakers
  • Vertically mounted main circuit breakers in 800A
  • Captive hardware on branch breakers
  • Staggered, center-mounted, larger frame breakers (SG, SF) for easy installation
  • Bus-connected TVSS for maximum surge protection
  • Narrow design to minimize footprint
  • Enclosure available in NEMA Type 1, Type 3R/12, Type 4/4X

Specifications

Manufacturer

Maximum Amperage

  • 800 Amps

Fully Rated

  • AQP Series - 65 kAIC at 240 V
  • AEP Series - 14 kAIC at 480Y/277 V, 65 kAIC at 240 V
  • ADP Series - 100 kAIC at 480 V

Documentation

Data Sheets

Certificates

Installation Instructions
