ACS880-07 Cabinet-Built Single Drive
Manufacturer: ABB
Images are representations only.

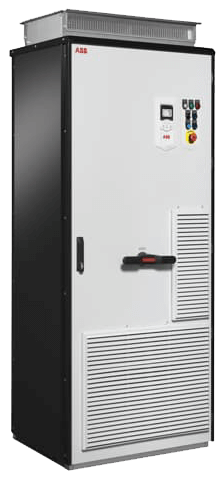

ACS880-07 Cabinet-Built Single Drive
Manufacturer: ABBBuilt on ABB’s all-compatible drives architecture cabinet-built drives have a wide range of standard and optional features, saving installation space and time.
Enjoy premium control of virtually any type of AC motor with direct torque control (DTC), including permanent magnet motors and synchronous reluctance motors.
Solutions to many different applications are possible with flexible connectivity and an extensive range of options.
Features- Power range 45 to 2800 kW
- Built on ABB’s common drives architecture
- Compact design for custom made needs
- IP22, IP42 and IP54 enclosure classes
- Direct torque control (DTC) as standard
- Integrated safety including STO as standard
- Intuitive control panel with USB port
- Choke as standard and EMC filter, brake chopper as options
- Supports a wide range of fieldbus protocols
- Flexible I/O and encoder options
Specifications
Manufacturer
Environmental Protection
- IP54
- IP42
- IP22
Voltage & Power Range
- 45 to 2800 kW
- Motor: 3-Phase output Voltage 0 to UN2 /UN3 /UN5 /UN7
- Mains: 3-Phase, UN7 525 to 690 V, ± 10 %
- Mains: 3-Phase, UN3 380-415 V, ± 10 %
- Mains: 3-Phase, UN5 380-500 V, ± 10 %
Humidity
- 5 to 95 % Relative Humidity, no condensation
Frequency
- Mains: 50/60 Hz ± 5 %
- Motro: 0 to ± 598 Hz
Motro Control
- Direct torque Control (DTC)
Efficiency
- 98 % at nominal Power
Certifications & Approvals
- UL, CSA
- TÜV
- RCM, EAC
- ATEX
- EMC
- LVD
- CE
- RoHS
Storage / Transport Temperature
- -40° to 70° C
Operating Temperature
- Air-Cooled: 40° to 50° C with Derating of 1 %/1° C
- Air-Cooled: 0° to 40° C as Standard
Cooling Type
- Dry Clean Air
Altitude
- 0 to 1,000 m without derating
- 1,000 to 4,000 m with derating of 1 %/ 100 m
Air Flow
- 1,750 to 12,870 m³/h
Noise
- 67 to 78 dB(A)
Documentation
Brochure
Catalog
Certificate
- ACS880 with FPTC-01 (+L536) TUV NORD certificate for PTC Protection (Safe Motor Temperature, SMT) function pdf 125 KB
- ACS880 with FPTC-01 (+L536) TUV NORD certificate for PTC Protection (Safe Motor Temperature, SMT) function pdf 128 KB
- ACS880 with FPTC-01 (+L536) TUV NORD certificate for PTC Protection (Safe Motor Temperature, SMT) function pdf 140 KB
- ACS880 with FPTC-01 (+L536) TUV NORD certificate for PTC Protection (Safe Motor Temperature, SMT) function pdf 169 KB
- ACS880 with FPTC-02 ATEX certificate, ATEX-certified motor thermistor protection (+L537 +Q971) pdf 450 KB
- ACS880-07/-17/-37, -07LC, -17LC, -37LC, -107, -107LC and multidrives ATEX certificate, ATEX-certified motor thermal protection function +L513/+L514 +Q971 pdf 449 KB
- ACS880-x4 -04XT -x04 -xx04 -x7 -x07 -xx07 RMRS marine type approval certificate pdf 179 KB
- ACS880-x4 (frames R8i), -04XT, -04FXT, -x7(LC), -x04, -x04LC, -x07 and multidrives, EU Declaration of Conformity pdf 3.9 MB
- ACS880-x7 -x07 -xx07 ABS marine type approval certificate pdf 47 KB
- ACS880-x7 -x07 -xx07 BV marine type approval certificate over 50kW pdf 404 KB
- ACS880-x7 -x07 -xx07 CCS marine type approval certificate pdf 1.8 MB
- ACS880-x7 -x07 -xx07 DNV GL marine type approval certificate pdf 441 KB
- ACS880-x7 -x07 -xx07 LR marine type approval certificate pdf 598 KB
- ACS880/ACS880LC TUV NORD STO certificate pdf 1.7 MB
- ATEX Production Quality Assurance Notification, EESF 19 ATEX Q 013, ABB LV Drives Helsinki pdf 436 KB
- BS EN ISO 9001:2008 and The TickIt Guide Certificate, ABB Helsinki pdf 393 KB
- Certificate of Qualification, ABB Oy Drives, Helsinki - CSA International pdf 638 KB
- Declaration of Conformity according to Machinery Directive 2006/42/EC for ACS880-07, US pdf 1.4 MB
- Declaration of Conformity, Machinery Directive 2006/42/EC, ACS880-04/-14/-34 (nxR8i), -04XT, -04FXT, -104, -07 -17, -37, -104LC, -17LC, -37LC, -107LC, multidrives pdf 3.2 MB
- Declaration of Conformity, Machinery Directive 2006/42/EC, ACS880-04/-14/-34 (nxR8i), -04XT, -04FXT, -104, -07 -17, -37, -104LC, -17LC, -37LC, -107LC, multidrives pdf 1.5 MB
- Declaration of Conformity, Machinery Directive 2006/42/EC, ACS880-04/-14/-34 (nxR8i), -04XT, -04FXT, -104, -07 -17, -37, -104LC, -17LC, -37LC, -107LC, multidrives pdf 128 KB
- Declaration of Conformity, RCM Declaration, EN61800-3:2004, ACS880-07, -17, -37 pdf 348 KB
- Declaration on Conformity, ATEX Directive, ACS880-07/-17/-37/-107/-07CLC/-17LC/-37LC/-107LC, ATEX certified motor thermal protection function, +L513/+L514 +Q971 pdf 72 KB
- EU Declaration of Conformity LVD 2014/35/EU and EMCD 2014/30/EU, ACS880-07, US pdf 728 KB
- EU Declaration of Conformity, ACS880, ACS580, ACS800LC cabinet built drives lifting equipment pdf 62 KB
- ISO 9001:2015 Quality Certificate and ISO 14001:2015 Environmental Certificate, ABB Oy pdf 327 KB
- OHSAS 18001:2007 Occupational Health and Safety Certificate, ABB Oy pdf 324 KB
- Production Quality Assurance Notification, Eurofins 19 ATEX Q025, ABB Drives Estonia pdf 435 KB
- PDF ACS880 with FPTC-02 ATEX 2014/34/EU & MD 2006/42/EC EU DoC pdf 107 KB
Manual
- ACS800 and ACS880 RSYC-01 Synchronizing Unit User's Manual pdf 1.8 MB
- ACS880 +C132 marine type-approved cabinet-built drives supplement pdf 719 KB
- ACS880 Cavitation detection control program Supplement pdf 1.5 MB
- ACS880 diode supply control program firmware manual pdf 4.8 MB
- ACS880 diode supply control program firmware manual - Drive composer version pdf 4.8 MB
- ACS880 Primary control program Firmware manual pdf 1.2 MB
- ACS880 Primary control program Firmware manual pdf 5.1 MB
- ACS880 Primary control program Firmware manual - Drive composer version pdf 5.5 MB
- ACS880-07 (45 to 710 kW) hardware manual pdf 31.4 MB
- ATEX-certified thermal motor protection functions for cabinet-built ACS880 drives (+L513+Q971 and +L514+Q971) User's manual pdf 1.8 MB
- Bypass connection for ACS880-07, -17, and 37 drives Option description pdf 711 KB
- Drive composer start-up and maintenance PC tool user's manual pdf 20.8 MB
- EDS Export User's manual pdf 515 KB
- Emergency stop, configurable stop category 0 or 1 (+Q978) for ACS880-07/07LC/17/17LC/37/37LC drives user's manual pdf 1.3 MB
- Emergency stop, configurable stop category 0 or 1 (option +Q979) for ACS880-07/07LC/17/17LC/37/37LC drives user’s manual pdf 1.1 MB
- Emergency stop, stop category 0 (option +Q951) for ACS880-07/07LC/17/17LC/37/37LC drives User’s manual pdf 1,012 KB
- Emergency stop, stop category 0 (option +Q963) for ACS880-07/07LC/17/17LC/37/37LC drives user's manual pdf 936 KB
- Emergency stop, stop category 1 (option +Q952) for ACS880-07/07LC/17/17LC/37/37LC drives user’s manual pdf 1.0 MB
- Emergency stop, stop category 1 (option +Q952) for ACS880-07/07LC/17/17LC/37/37LC drives user’s manual pdf 1.0 MB
- Emergency stop, stop category 1 (option +Q964) for ACS880-07/07LC/17/17LC/37/37LC drives user’s manual pdf 985 KB
- Prevention of unexpected start-up (option +Q950) for ACS880-07/07LC/17/17LC/37/37LC drives user’s manual pdf 979 KB
- Prevention of unexpected start-up (option +Q957) for ACS880-07/07LC/17/17LC/37/37LC drives user’s manual pdf 933 KB
- PSL2 data logger file Signals and data word description pdf 3.9 MB
- SynRM motor control program (option +N7502) for ACS880-01, ACS880-07, ACS850-04 and ACQ810-04 drives Supplement pdf 1.1 MB
- MUL ACS880 Primary ctrl prg Quick start-up guide D.pdf 2.1 MB
- PDF ACS880-07 drives (560 to 2800 kW) hardware manual pdf 17.1 MB
