Detcon Model FL-10 is a single sensor control module designed for use with industry standard flame detection devices featuring a 4-20 mA output signal.

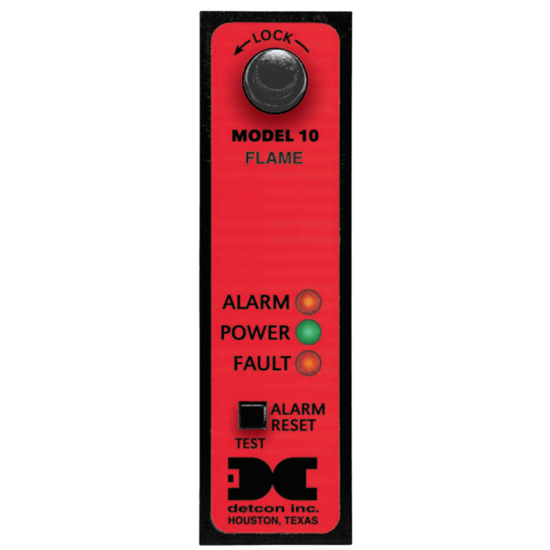

Status indication is via front panel color coded LED’s; green for power input, red for alarm condition and red for fault condition.

The FL-10 control module features latching or non-latching relay programming and a front panel reset/acknowledge switch.

Model FL-10 control module is addressable via RS-485 Modbus serial communication.

Input power requirement is 18-30 Vdc.

Each module is equipped with a normally energized fault condition relay and 2 alarm condition relays. Alarm condition relays can be programmed as normally energized or normally de-energized. Relay contacts are form “C” and rated for 5 amps at 30 Vdc.

The FL-10 alarm control module is part of Detcon Model series 10 single sensor control card product group.

A wide range of system designs is available including rack and panel mount mainframe assemblies, NEMA 4X weatherproof enclosures and NEMA 7 explosion proof enclosures.

This flexible product group facilitates easy integration of fire and gas detection devices providing indication of real time status indication and alarm output functions in compact and completely modular pre-engineered systems.
