BG2 Manual Fire Alarm Call Point
Manufacturer: EATON | MEDC
Images are representations only.

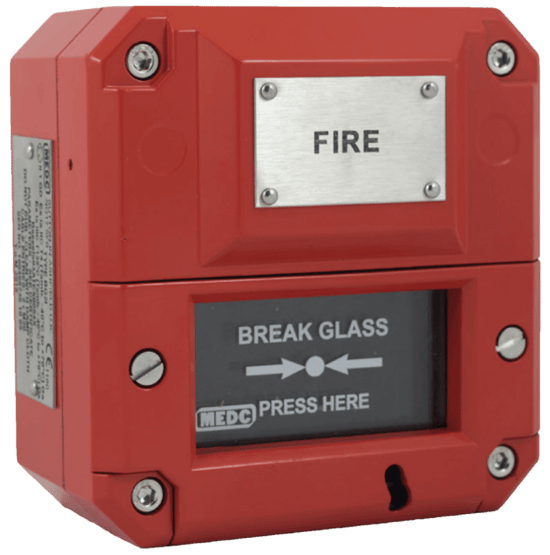

BG2 Manual Fire Alarm Call Point
Manufacturer: EATON | MEDCThis BG2 Manual Fire Alarm Call Point has been designed for use in flammable atmospheres and harsh environmental conditions.
The GRP enclosure is suitable for use offshore or onshore where light weight combined with a high level of corrosion resistance is required.
Features- Zone 0, Zone 1 and Zone 2 use
- Exed, Exia or weatherproof
- ATEX approved
- Ex II 1GD (Exia)
- BASEEFA certified
- IP66 and IP67
- Certified temperature: -40° to +50° C (Model dependent)
- Corrosion resistant red painted GRP
- Retained stainless steel cover screws
- Optional lift flap
- Key operated test facility
- Lightweight and robust
- Breakglass hammer available (Contact sales office for details)
Specifications
Manufacturer
Material
- Anti Static UV Resistant Glass Reinforced Polyester
Finish
- Painted Red
Certified Temperature
- -40° to +70° C
Voltage
- Up to 50 Vdc (Model dependent)
- Up to 250 Vac
Ingress Protection
- IP66 and IP67
Cable Entries
- 2 x M20 Bottom
Terminals
- 6 x 2.5 mm²
Resistors Values
- Ex de - 100 Ω Min., 39 KΩ Max.
- Ex ia - 470 Ω Min.
Certifications & Approvals
- ATEX
Switch Ratings
- Switch Only: 30 Vdc 5 A (Resistive) or 3 A (Inductive)
- Switch Only: 30-50 Vdc 1 A (Resistive or inductive)
- Switch Only: 250 Vac 5 A (Resistive or inductive)
- Resistor(s): 24 Vdc 0.05 A
Weight
- 1.2 kg
