PD6402 ProVu True RMS High Voltage & mV to Current Meter
Manufacturer: Precision Digital
Images are representations only.
PD6402 ProVu True RMS High Voltage & mV to Current Meter

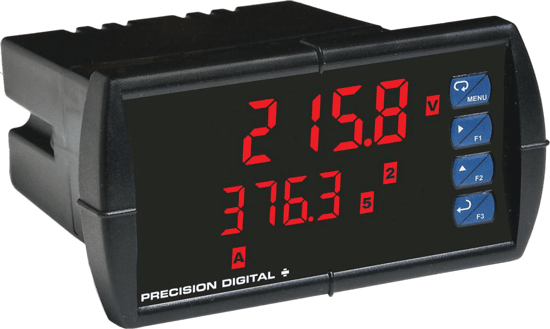

Manufacturer: Precision DigitalThe ProVu PD6402 is a True RMS High Voltage & mV to Current Meter and is an ideal replacement for the discontinued Bitronics GSDIE1.
It will simultaneously measure a direct line voltage up to 300 V and a current shunt output up to 150 mV.
The mV input can be scaled to represent current (A).
The PDA6018 adapter plate allows for use of existing mounting cutouts. Extra bright LEDs make for easy reading, even in adverse lighting conditions.
The PD6402 is frequently used to monitor field excitation voltage and current during start up and shut down of generating equipment.
Features- Ideal Replacement for Bitronics Model GSDIE1
- Bitronics to 1/8 DIN Adapter Mounting Plate Available
- 1/8 DIN Digital Panel Meter with NEMA 4X, IP65 Front
- (1) High Voltage Input and (1) mV Input
- True RMS AC with Crest Factor of 2 at Full Scale
- 0-300 VAC or VDC Voltage Input
- 0-150 mV AC or DC Input from Current Shunt
- Easy Field Scaling
- Dual-Line 6-Digit Display, 0.6" (15 mm) & 0.46" (12 mm)
- UL & C-UL Listed. E160849; 508 Industrial Control Equipment
- 3-Year Warranty
Specifications
Manufacturer
Display
- Line 1: 0.60" (15 mm) high, red LEDs
- Line 2: 0.46" (12 mm) high, red LEDs
- 6-digits each (-99999 to 999999), with lead zero blanking
Display Intensity
- Eight user selectable intensity levels. Default is six
Display Update Rate
- 5/second (200 ms)
Programming Methods
- Four front panel buttons, digital inputs, PC and MeterView Pro software, or Modbus registers
Operating Temperature
- -40° to 65° C (-40° to 149° F)
Storage Temperature
- -40° to 85° C (-40° to 185° F)
Relative Humidity
- 0 to 90 % Non-condensing
Connections
- Removable screw terminal blocks accept 12 to 22 AWG wire, RJ45 for external relays, digital I/O, and serial communication adapters
Isolation
- 500 Vac/dc potential allowed between voltage and current input channels
- Channels isolated by 3 MΩ impedance 4 kV input/output-to-power line 500 V input-to-output or output-to-P+ supply
Enclosure
- 1/8 DIN, high impact plastic, UL 94V-0, color: black
Front Panel
- NEMA 4X, IP65
Mounting
- 1/8 DIN panel cutout required: 3.622" x 1.772" / 92 mm x 45 mm
- Two panel mounting bracket assemblies are provided
Overall Dimensions (W x H x D)
- 4.68" x 2.45" x 5.64" (119 mm x 62 mm x 143 mm)
Weight
- 9.5 oz. (269 g)
Tightening Torque
- Screw terminal connectors: 5 lb-in (0.56 Nm)
Warranty
- 3 Years Parts & Labor
Communication
- Modbus® RTU
Approvals
- cULs
- CE
