PD6060 ProVu Dual Analog Input Process Digital Panel Meter
Manufacturer: Precision Digital
Images are representations only.
PD6060 ProVu Dual Analog Input Process Digital Panel Meter

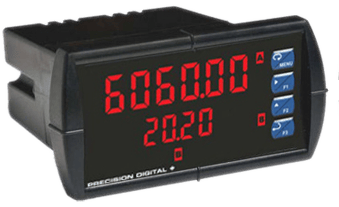

Manufacturer: Precision DigitalThe PD6060 meter combines two independently programmed Analog inputs with powerful math functions to make an advanced meter capable of handling complex math requirements common in the process industry.
Various math functions may be applied to the inputs including addition, difference, average, multiplication, division, ratio, and more.
A customizable dual-line display allows a wide variety of input variables, math calculations, or units and tags to be displayed based on your application needs.
Features- Dual-Input Process Meter with Math Functions
- Addition, Difference, Average, Multiplication, Division, Min, Max, Weighted Average, Ratio, Concentration, & More
- 0-20 mA, 4-20 mA, 0-5 V, 1-5 V, and ±10 V Inputs
- Large Dual-Line 6-Digit Display, 0.60" & 0.46"
- Optional SunBright Display Models for Outdoor Applications
- NEMA 4X, IP65 Front
- Universal 85-265 VAC, or 12-24 VDC Input Power Models
- Isolated 24 VDC at 200 mA Transmitter Power Supply
- Programmable Display & Function Keys
- 32-Point, Square Root, or Exponential Linearization
- Multi-Pump Alternation Control
- 2 or 4 Relays + Isolated 4-20 mA Output Options
- External 4-Relay & Digital I/O Expansion Modules
- USB, RS-232, & RS-485 Serial Communication Options
- Modbus RTU Communication Protocol Standard
- On-Board Digital Input
- Onboard USB and MeterView® Pro Programming Software
Specifications
Manufacturer
Alarm
- Unused Alarm LEDs & Relays May be Disabled
- User May Program Any Alarm for High or Low Trip Point
Approvals & Certifications
- UL
Calibration
- +10 Volts: Min. Span Input 1 & 2: 0.10 Volts
- 4-20 mA: Min. Span Input 1 & Input 2: 0.15 mA
Communication
- Serial Communication Adapters
Deadband
- 0 to 100 % of Span
- User Programmable
Display
- Red LEDs
- Upper: 0.60” High, Lower: 0.46” High
Electrical Connectors
- Digital I/O
- Removable Terminal Blocks Accept 12 to 20 AWG
- RJ45 for External Relays
Environmental Protection
- IP65
- IP66
- NEMA 4X / IP66
Humidity
- 0 to 90 % Non-Condensing
Input
- Two Channel
Isolation
- 4 kV Input/Output-to-Power-Line
- 500 V Input to Output or Output to P+ Supply
Mounting
- 1/8” DIN Panel Cut-out Required. Two Panel Mounting Brackets Included.
Operating Temperature
- -40° to 65° C (-40° to 150° F)
Output
- 4-20 mA
Programming
- Cloning Using Copy Function
- Digital Inputs
- Four Front Panel Buttons
- Modbus Registers
- PC & MeterView Pro Software
Rating
- 2 or 4 SPDT Internal and/or 4 SPST External Relays
Relay Operation
- Automatic (Non-Latching)
- Latching (Requires Manual Acknowledge)
- Off (Disable Unused Relays & Enable Interlock Feature, Manual ON/OFF Control Mode)
- Pump Alternation Control (2 to 8 Relays)
- Sampling (Based on Time)
Supply Voltage
- 90-265 Vdc
Torque
- 5 In/Lbs
