PDA1004 ProVu 4 Relays Expansion Module
Manufacturer: Precision Digital
Images are representations only.

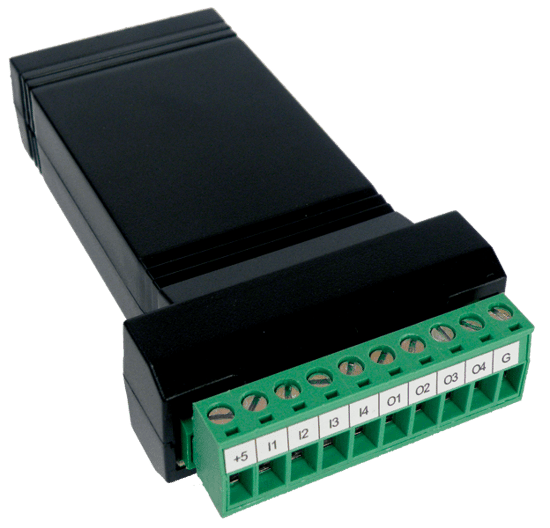

PDA1004 ProVu 4 Relays Expansion Module
Manufacturer: Precision DigitalThe PDA1004 four relay external expansion module adds four 3 amp Form A (SPST) relays to any ProVu meter.
It can be configured for functions similar to the ProVu onboard relays and can be added at any time.
Specifications
Manufacturer
Relays
- Four Form A (SPST), Rated 3 A @ 30 Vdc and 125/250 Vac for Resistive Loads
- 1/14 HP @ 125/250 VAC for inductive loads
Cable
- Standard CAT5e cable; provided with module
Connectors
- RJ45; identical and interchangeable. Removable screw terminal blocks that accept 12 to 22 AWG wire
Tightening Torque
- Screw terminal connectors: 5 lb-in (0.56 Nm)
Enclosure
- ABS-94HB Material, UL 94HB (Flame-Class Rating)
Power
- ProVu meter M-LINK Connection
Overall Dimensions (W x H x D)
- 2.3” x 0.9” x 3.6” (58 mm x 23 mm x 92 mm)
Weight
- 2 oz (62 g)
