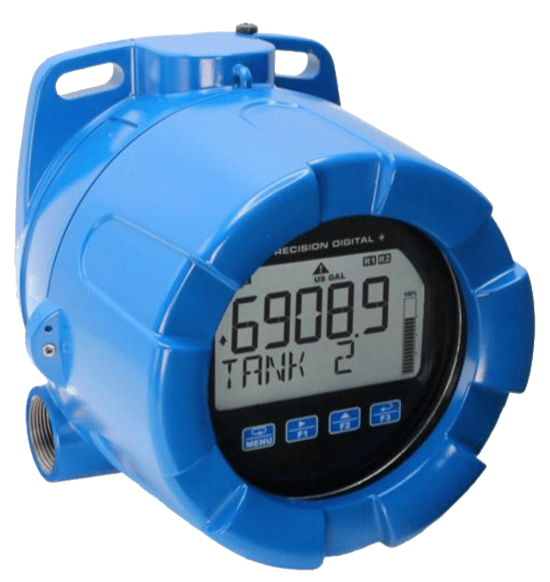

The ProtEX+ loop-powered explosion-proof & intrinsically safe meters can be installed virtually anywhere to provide convenient and informative display of any 4-20 mA signal. They can operate down to -40°C and be installed in areas that get as cold as -55°C, however the display will cease functioning.

One of the most convenient features is the dual-line display, typically used to display the process variable on the 5-character alphanumeric top display and the units of measure or tag on the 8-character alphanumeric bottom display.

Feet and inches models display level in feet and inches on the top display while the 8-digit alphanumeric bottom line may be used to display a tag or custom message. Further enhancing the display on these instruments is a 20-segment bargraph.

The ProtEX+ carries all major approvals including:

• UL Listed as Explosion-Proof / Dust Ignition-Proof / Flame-Proof
• CSA Certified as Explosion-Proof / Dust Ignition-Proof / Flame-Proof
• ATEX and IECEx Certified as Intrinsically Safe / Explosion-Proof

Four CapTouch through-glass buttons are available to operate the instrument without removing the cover. The CapTouch buttons have two modes of operation: Normal and Delayed, and they can be disabled for security via a switch on the display module.

All models come equipped with two open collector outputs and a digital input. There are also models available with two solid-state relays and isolated 4-20 mA analog output options.

The open collector outputs are useful for alarm indication. The digital input can be used to acknowledge the relays, to start/stop a timer/stopwatch, and more. The relays can be programmed for alarm indication, on/off control, or pump alternation.

• Fully-Approved Explosion-Proof & Intrinsically Safe Loop-Powered Meters
• 4-20 mA Input Displayed with ±0.02% of Full-Scale Accuracy
• 1.5 Volt Drop (4.7 Volt Drop with Backlight)
• Top Display: Five 7-Segment Digits, FT-IN & Fractions, 0.7" (17.8 mm) (PD6907)
• Top Display: Five 12-Segment Alphanumeric Characters, 0.7" (17.8 mm) (PD6908)
• Bottom Display: Eight 14-Segment Alphanumeric Characters, 0.4" (10.2 mm)
• Displays Level in Feet & Inches up to 999 Feet, 11 & 15/16 Inches (PD6907)
• 20-Segment Bargraph Standard
• Display Mountable at 0°, 90°, 180°, & 270° (No Tools Required)
• CapTouch Through-Window Button Programming with Normal and Delayed Modes
• Loop-Powered Backlight with Red Backlight for Alarm Conditions
• (2) Open Collector Outputs Standard; Assignable to Pulse, Alarm, Timer, or Stopwatch
• (2) Optional Loop-Powered Solid-State Relays; Assignable to Alarm, Control, Timer, or Stopwatch
• Stopwatch & Timer Functions to Drive Relays & Open Collectors
• Optional Isolated 4-20 mA Analog Output
• Relay Pump Alternation Based on Level and Runtime
• Display Relay Runtime & Cycle Count via Relay Info Menu
• Round Horizontal Tank Function; Just Enter Diameter & Length
• 32-Point Linearization (PD6907)
• 32-Point Linearization, Square Root Extraction and Programmable Exponent Function (PD6908)
• Free PC-Based MeterView XL USB Programming Software
• HART® Protocol Transparent
• Enable and Disable Backlight from Menu
• Operating Temperature Range: -40 to 75°C (-40 to 167°F)
• Installation Temperature Range: -55 to 75°C (-67 to 167°F)
• Conformal Coated PCBs for Dust & Humidity Protection
• Password Protection
• UL Listed as Explosion-Proof / Dust Ignition-Proof / Flame-Proof
• CSA Certified as Explosion-Proof / Dust Ignition-Proof / Flame-Proof
• ATEX and IECEx Certified as Intrinsically Safe / Explosion-Proof
• Flange for Wall or Pipe Mounting; Loop for Stainless Steel Tag; Holes for Tamper-Proof Seal
• Explosion-Proof, IP68, NEMA 4X Die-Cast Aluminum & Stainless Steel Enclosures
• 3-Year Warranty
