PDA6844 Panel Mounting Kit for PD686

Manufacturer: Precision Digital
Images are representations only.

PDA6844 Panel Mounting Kit for PD686

Manufacturer: Precision Digital

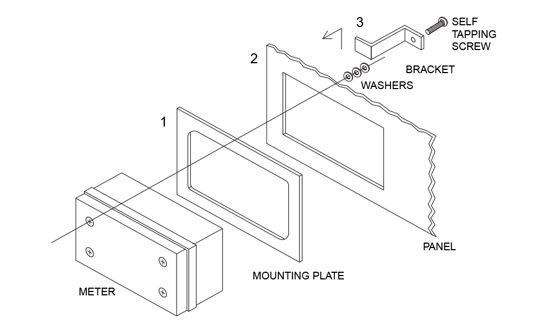

These panel mounting kits provide a convenient way to mount Precision Digital’s models PD662, PD685, and PD686 in a panel.

All the necessary hardware is provided and installation is a quick and easy process.

It is important to note that these panel mounting kits do not provide a NEMA 4X seal to the panel.

Features
  • Mounts NEMA 4X Field Meters in Panel
  • All Necessary Hardware Provided

Specifications

Manufacturer

Panel Cutout Required

  • 5.40" x 3.08" (138 x 78 mm)

Mounting Plate Overall Dimensions

  • 6.43" x 4.05" x 0.125" (163 x 103 x 3 mm)

Weight

  • 0.2  lb (0.1 kg)

Documentation

Product Manual
