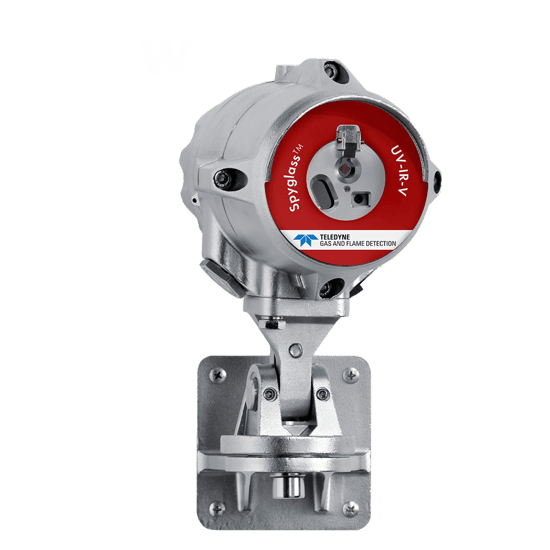

Spyglass UV-IR family of flame detectors provides ultra-fast response, high performance and reliable detection of hydrocarbon and non-hydrocarbon fires including hydrogen, hydrogen/methane blends, ammonia, and silane. The SG50-F-UV-IR-F is similar to the SG50-F-UV-IR, except it is optimized for hydrocarbon fires such as methane, fuels, and solvents. The SpyglassTM family of triple IR and UV-IR flame detectors provide top-tier optical flame detection with faster detection time and performance over long distances.

• High immunity to False Alarm
• Hydrocarbon and non-hydrocarbon flame detection
• High sensitivity – up to 100 ft. (30m) for a 1 ft2 (0.1m2)n-heptane fire
• Ultra-fast detection within 5 milliseconds for fireballs or explosions
• High speed (<0.5s) model [X5] available for compliance with NFPA 33
• HD or composite video output with automatic recording of fire events with UV-IR-V & UV-IR-F-V
• Data/Event logger: Alarms, faults & videos as well as other relevant events are logged to non-volatile memory
• Universal outputs, 3 and 4 wire, 4-20 mA sink / source, Fire, Auxiliary and Fault Relays. RS485 port using Modbus RTU
• Built-in-Test (BIT) – Automatic and manual internal self-test of window cleanliness and the overall operation of the detector
• Additional dirty optics warning for preventive maintenance needs
• *HART® 7 - Easy configuration and diagnostic capability
• Window heater to avoid condensation and icing
• Stainless steel tilt mount with horizontal and vertical adjustment
• *SIL 2 compliant - suitable for use as part of a SIL 2 compliant safety system
• Detect high UV (sparks and arcs) or IR levels via auxiliary relay or 4-20mA

*not on base unit options
