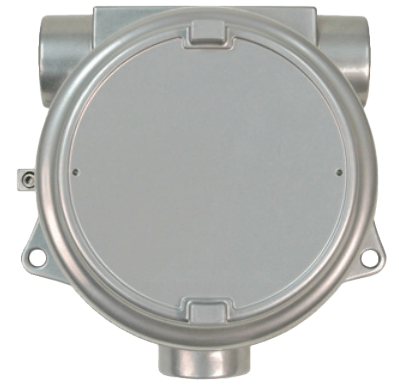

Aluminum NEMA 7 Junction Box
Manufacturer: Teledyne| Detcon
Images are representations only.
Aluminum NEMA 7 Junction Box
Manufacturer: Teledyne| DetconDetcon aluminum junction boxes are available with a glass lens or solid cover and are installed in conduit systems within hazardous areas to:
- Provide protection against exterior explosion where hydrogen & other combustible gases are present
- Protect conductors in threaded rigid conduit
- Act as pull and splice boxes Interconnect lengths of conduit
- Change conduit direction
- Provide access to conductors for maintenance & future system changes
Specifications
Manufacturer
Approvals & Certifications
- ATEX
- CSA
- ISO 9001: 2000
- UL
Cover Type
- Glass Lens Cover
- Solid Cover
- Surface Cover - Furnished with Boxes
- Threaded Cover
Enclosure, Body Material
- Aluminum
Environmental Protection
- Class 1, Div. 1, Groups B, C, D
- Class I, Zone 0, Group IIB + Hydrogen
- NEMA 4X
- NEMA 7
NPT Connection
- 3/4" NPT
O-Ring Material
- Neoprene - O-Ring Gasket
Thread
- M118 x 2 - 66/6 G (Cover Threads)
- Hazardous Areas
- Protect Conductors in Threaded Rigid Conduit
- Provide Protection Against Exterior Explosion Where Hydrogen & Other Combustible Gases are Present
- Pull & Splice Boxes
