PD6088 ProVu Decimal Display Modbus Scanner

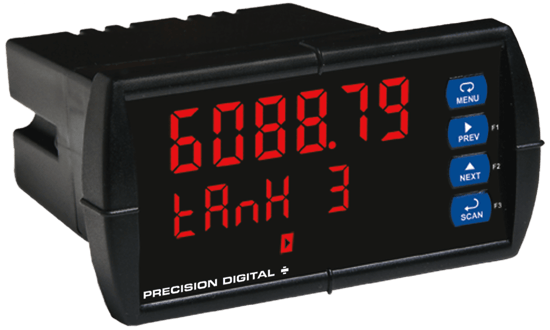

Manufacturer: Precision DigitalThe ProVu PD6088 Super Snooper Modbus® scanner displays up to 16 Modbus process variables (PVs) on the bus using its RS-485 serial input. The PD6088 can function as a Modbus master, slave, or snooper.
As a Modbus master, the PD6088 can poll multiple Modbus devices for up to 16 Modbus process variables.
As a slave, a Modbus master can write up to 16 PVs to the scanner for display. In snooper mode, it can sit anywhere on the Modbus network and display up to 16 PVs being polled on the bus.
When connecting a scanner in snooper mode, no other Modbus devices on the network need to be reconfigured, making it easy to add additional local or remote displays to a Modbus network.
Like all ProVu meters, the PD6088 includes UL / C-UL listing and CE marking, a NEMA 4X front, and AC or DC power options. Various math functions may be applied to the analog or Modbus inputs, such as addition, difference, average, and ratio.
Features- Modbus® RS-485 RTU Serial Communications as Master, Slave, or Snooper
- RS-485 Serial Communications Standard
- Scan up to 16 Modbus Process Variables
- Addition, Difference, Average, Multiplication, Division, Min, Max, Weighted Average, Ratio, Concentration, & More
- Large Dual-Line 6-Digit Display, 0.60" & 0.46"
- SunBright Display Standard
- NEMA 4X, IP65 Front
- Universal 85-265 VAC, or 12/24 VDC Input Power Models
- Onboard USB and ScanView Programming Software
Specifications
Manufacturer
Input/Output
- Modbus RTU over RS-485
Display
- Upper display: 0.60" (15 mm) high
- Lower display: 0.46" (12 mm) high
- Both are 6 digits (-99999 to 999999), red LEDs
Display Intensity
- Eight user selectable intensity levels
Display Scan Rate
- Master/Snooper: 1/second to once every 99.9 seconds. Slave: Dependent on master device (e.g. PLC)
Front Panel
- IP65
- NEMA 4X
Power Options
- 85-265 VAC 50/60 Hz, 90-265 VDC, 20 W max
- 12-24 VDC ± 10%, 15 W max. Powered over USB for configuration only
Isolation
- 4 kV Input/Output-to-Power-Line
- 500 V Input to Output or Output to P+ Supply
Environmental
- Storage: -40 to 85°C
- Relative humidity: 0 to 90% non-condensing
- Operating: -40° to 65° C (-40° to 150° F)
Connection
- Removable screw terminal blocks accept 12 to 22 AWG wire, RJ45 for external relays, digital I/O, and serial communication adapters
Mounting
- 1/8 DIN panel cutout required: 3.622" x 1.772" (92 mm x 45 mm)
- Two panel mounting bracket assemblies are provided
Overall Dimensions (W x H x D)
- 4.68" x 2.45" x 5.64" (119 mm x 62 mm x 143 mm)
Weight
- 9.5 oz (269 g)
Approvals & Certifications
- CE
- cULs
