FT1 Flow Totalizer (RS485 MODBUS)

Manufacturer: OleumTech

FT1 Flow Totalizer (RS485 MODBUS)

Manufacturer: OleumTech

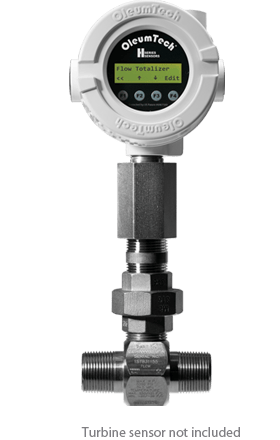

The OleumTech® HW5000-FT1 Flow Totalizer (RS485 Modbus) is designed to work with virtually any third-party turbine flow meter, measuring accumulated flow rates and volume. Real time flow rates and volumes may be accumulated and displayed in barrels, liters, gallons, or cubic meters per second, minute, hour, or day. The HW5000-FT1 provides a 2-pin pickup coil connector and a 1-inch mating union for connecting to a turbine meter. The push button LCD interface allows for device configuration and instant access to process data, which is updated every second.
Features
  • Works with third-party turbine flow meters
  • Provides local reading of flow data
    – Instantaneous rate
    – Totalizer
    – Today’s totals
    – Yesterday’s totals
    – Modbus error count
    – Modbus status
  • RS485 Modbus Interface
  • Device is fully configurable using the LCD display, UI,
    RS485 Modbus, or the H Series Configuration Software
  • LCD is always on with auto-scroll convenience
  • Self-contained, rugged design
  • 9-30 Vdc external power input
  • Installs in minutes
  • IP66, -20 °C to 70 °C (-4 °F to 158 °F)
  • Class I, Division 1 (Zone 0), Intrinsically Safe
