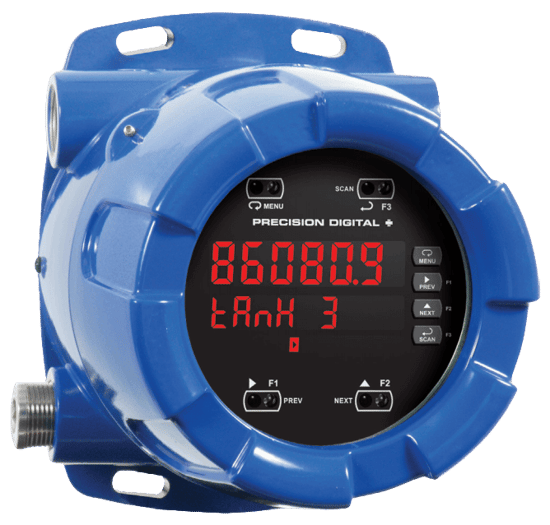

The ProtEX-MAX PD8-6080 and PD8-6081 Explosion-Proof Modbus Scanners can be programmed as a Master, Slave, or Snooper. Their primary use is to scan and display up to 16 Modbus registers or two 4-20 mA inputs in place of two Modbus registers.

In Master mode, the ProtEX-MAX reads up to 16 slave devices. In Snooper mode, the scanner listens to the Modbus traffic and picks up a specific register or registers being polled by a master device from a specific slave device and process the data being read.

In Slave mode, the scanner is controlled by a master device. In all modes, the data sent to the scanner is displayed, and used to operate the relays and 4-20 mA output.

The scanners are capable of polling up to 16 process variables (PVs) and displaying them in sequence at a user programmable scan rate.

A fully loaded ProtEX-MAX scanner comes with four SPDT relays, a 4-20 mA output, five digital inputs and four digital outputs, and RS-485 serial communications.

Free ScanView software allows the ProtEX-MAX Modbus Scanner to be accessed via a computer. It can be used to configure multiple scanners, conveniently monitor critical information, and data log right from a PC.

• Fully Approved Explosion-Proof Modbus Scanners
• Modbus RS-485 RTU Scanner as Master, Slave, or Snooper
• Dual Analog Inputs (0-20 mA, 4-20 mA, 0-5 V, 1-5 V, and ±10 V)
• On-Board USB & RS-485 Serial Communication Standard
• Decimal or Feet & Inches (with Eighths & Sixteenths) Display Options
• Poll and Display up to 16 Process Variables
• Add, Diff, Avg, Multi, Div, Min, Max, Weighted Avg, Ratio, Concentration, & More
• Dual-Line 6-Digit Display, 0.6" (15 mm) & 0.46" (12 mm)
• SafeTouch Through-Glass Button Programming
• Display Mountable at 0°, 90°, 180°, & 270°
• 4 Relays with Interlocking Capability + Isolated 4-20 mA Output Option
• Password Protection
• Free PC-Based, On-Board, ScanView USB Programming Software
• SunBright Display Standard Feature; Great for Outdoor Applications
• Operating Temperature Range: -55 to 65°C (-67 to 149°F)
• CSA Certified as Explosion-Proof / Dust-Ignition-Proof / Flame-Proof
• ATEX and IECEx Certified as Flame-Proof
• Input Power Options: 85-265 VAC / 90-265 VDC or 12-24 VDC / 12-24 VAC
• Multi-Pump Alternation Control
• 32-Point, Square Root, or Exponential Linearization
• Flanges for Wall or Pipe Mounting
• Explosion-Proof Aluminum or Stainless Steel NEMA 4X / IP68 Enclosures
• Four 3/4" NPT Threaded Conduit Openings
• Pipe Mounting Kits
• Stainless Steel Tag Available
• 3-Year Warranty
