PD6001 ProVu Feet & Inches Level Meter

Manufacturer: Precision Digital

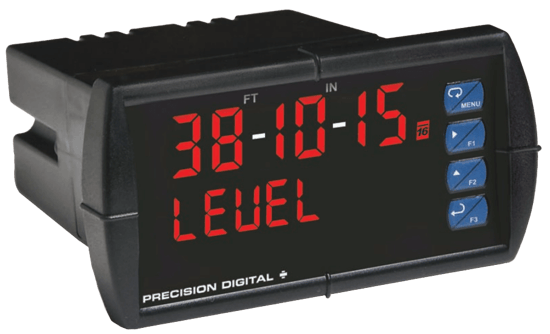

Precision Digital ProVu Analog Input Feet and Inches Meter, PD6001

Images are representations only.

PD6001 ProVu Feet & Inches Level Meter

Manufacturer: Precision Digital

Request a Quote Favorite

The PD6001 is a member of the ProVu^® series of 1/8 DIN digital panel meters specifically designed to display level in feet and inches, instead of the usual decimal format.

The PD6001 accepts a process current (4-20 mA) or process voltage (0-5 V, 1-5 V, etc.) signal and displays that signal on a dual line display with convenient feet and inches designations on the upper line. The upper display can even read fractions of an inch in 8ths or 16ths. The lower line can be used to indicate a tag or to display the input in another scale, such as volume in gallons or liters.

Like all ProVu meters, the PD6001 includes UL / C-UL listing and CE marking, a NEMA 4X front, and AC or DC power options. ProVu meters can be equipped with up to four internal relays, a 4-20 mA output and Modbus® serial communications.

The PD6001 includes a 24 VDC power supply to drive the transmitter and can be programmed via the front panel pushbuttons or free MeterView^® Pro software.

Features

Feet & Inches Display Ideal for Level Applications
Large Dual-Line 6-Digit Display, 0.60" & 0.46" with Feet & Inches Designations
NEMA 4X, IP65 Front
Input Power Options Include 85-265 VAC or 12-24 VDC
0-20 mA, 4-20 mA, 0-5 V, 1-5 V, and ±10 V Inputs
Dual-Scale for Level & Volume – Single Input
Optional SunBright Display Models for Outdoor Applications
Isolated 24 VDC @ 200 mA Transmitter Power Supply
Signal Input Conditioning for Round Horizontal Tanks
Programmable Displays & Function Keys
32-Point or Exponential Linearization
Multi-Pump Alternation Control
2 or 4 Relays + Isolated 4-20 mA Output Options
External 4-Relay & Digital I/O Expansion Modules
USB, RS-232, & RS-485 Serial Communication Options
Modbus RTU Communication Protocol Standard (Slave)
Onboard USB and MeterView^® Pro Programming Software

Specifications

Manufacturer

Precision Digital

Display

Upper feet & inches display: 0.60" (15 mm) high with feet & inches designations
Lower display: 0.46" (12 mm) high
Both are 6 digits (-99999 to 999999), red LEDs

Display Range

0" 00" 0/16" to 99" 11" 15/16"

Display Intensity

Eight intensity levels

Display Update Rate

5/second (200 ms)

Deadband

Relay: 0 to 100 % of Span, User Programmable

Power Options

85-265 VAC 50/60 Hz, 90-265 VDC, 20 W max
12-24 VDC ± 10%, 15 W max.
Powered over USB for configuration only

Programming Methods

Four front panel buttons, digital inputs, PC and MeterView Pro software, Modbus registers

Normal Mode Rejection

Greater than 60 dB at 50/60 Hz

Environmental

Storage: -40 to 85°C
Relative humidity: 0 to 90% non-condensing
Operating: -40° to 65° C (-40° to 149° F)

Connection

Removable screw terminal blocks accept 12 to 22 AWG wire, RJ45 for external relays, digital I/O, and serial communication adapters

Enclosure

1/8 DIN, high impact plastic, UL 94V-0, color: black

Mounting

Two panel mounting bracket assemblies are provided
1/8" DIN Panel Cutout Required: 3.622" x 1.772" (92 mm x 45 mm)

Tightening Torque

Screw terminal connectors: 5 lb-in (0.56 Nm)

Dimensions (W x H x D)

4.68" x 2.45" x 5.64" (119 mm x 62 mm x 143 mm)

Accuracy

Isolated 4-20 mA Transmitter Output: ± 0.1 % of Span ± 0.004 mA
Process Input (Square Root & Programmable Exponent Accuracy Range): 10 % to 100 % of Calibrated Span
Process Input: ± 0.03 % of Calibrated Span ± 1 Count
