ACS2000 Medium Voltage Drive

Manufacturer: ABB

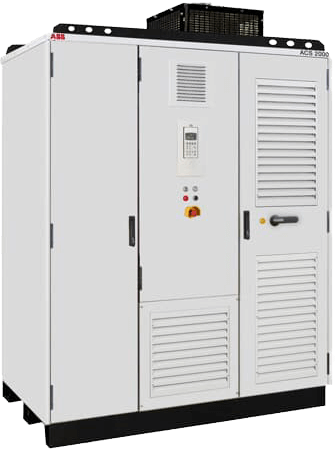

Images are representations only.

ACS2000 Medium Voltage Drive

Manufacturer: ABB
Request a Quote Favorite
The medium voltage ACS2000 drive is an industrial all-rounder that perfectly adapts to a wide variety of standard applications across all industries.

Various options and drive configurations allow you to choose a perfect match to increase efficiency of your processes and systems.

Boundless versatility makes the ACS2000 sure to fit perfectly into different conditions and environments, including hazardous areas, all over the world.

Benefit from the drive`s simple design and robust control platform which ensures reliable operations every day, everywhere.
Features
  • High reliability due to proven design and low parts count
  • High compatibility with standard motors due to multilevel topology
  • Fuseless design
  • Constant network power factor across the whole speed range
  • Direct Torque Control (DTC)
  • Flexible input (DFE with integrated trafo or external trafo, 24pulse, AFE, DTL)
  • Simple integration: 3 cables in – 3 cables out
  • Arc resistant design
  • IEC- and NEMA-specific designs
  • Power range 250 kW up to 3.68 MW

Specifications

Manufacturer

Voltage

  • Input: 1850 V, 1930 V, 4.16 kV, 6.0 kV, 6.6 kV, 6.9 kV (Higher on Request)
  • Output: 4.16 to 6.9 kV

Input Configuration

  • 24-pulse diode rectifier or active Front end

Frequency

  • Input: 50/60 Hz
  • Output: 0 to 90 Hz

Power

  • Output: 250 to 3,680 kW

Environmental Protection

  • IP21
  • NEMA 1
  • IP42 optional

Altitude

  • 2000 m.a.s.l.

Ambient Temperature

  • Air: 1° to 40° C

Noise

  • < 85 dB(A)

Cooling Type

  • Air

Standard

  • EN, IEC, CE, NEMA , IEEE , UL

  • Marine
  • Mining
  • Oil & Gas
  • Power
  • Water & Wastewater
  • Cement
  • Metals
  • Pulp & Paper

Documentation

Brochure

Catalog

Manual
