PD6081 ProVu Feet & Inches Modbus Scanner With Dual Analog Inputs
Manufacturer: Precision Digital
Images are representations only.
PD6081 ProVu Feet & Inches Modbus Scanner With Dual Analog Inputs

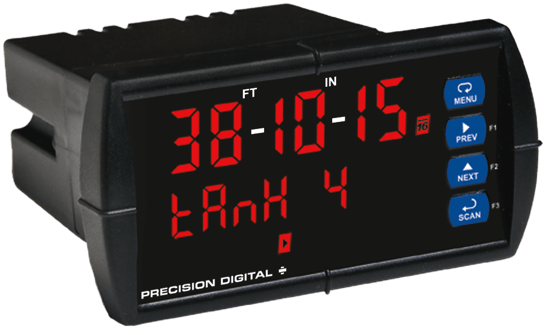

Manufacturer: Precision DigitalThe ProVu® PD6081 Super Snooper feet & inches Modbus® scanner displays level information on a specially designed feet & inches display, instead of the usual decimal format.
It is the ideal display for Modbus level or multivariable transmitters and is capable of scanning up to 16 Modbus process variables.
Its unique feet & inches upper LED display can indicate up to 99 feet, 11 and 15/16 inches.
The 6-digit lower display can indicate units, tags, or other variables such as volume, temperature, or density.
The PD6081 also has dual analog inputs, for integrating traditional 4-20 mA or voltage inputs in the display scanning.
The PD6081 can be setup as a Modbus master, slave, or snooper.
Like all ProVu meters, the PD6081 includes UL / C-UL listing and CE marking, a NEMA 4X front, and AC or DC power options. Various math functions may be applied to the analog or Modbus inputs, such as addition, difference, average, and ratio.
Features- Modbus® RTU Master, Slave, or Snooper Mode
- Poll and Display up to 16 Process Variables
- Displays Level Information in Feet & Inches
- Large Dual-Line 6-Digit Display, 0.60" & 0.46"
- SunBright Display Standard
- 32-Point, Square Root, or Exponential Linearization
- Addition, Difference, Average, Multiplication, Division, Min, Max, Weighted Average, Ratio, Concentration, & More
- Type 4X, NEMA 4X, IP65 Front
- Universal 85-265 VAC, or 12/24 VDC Input Power Models
- 12-36 VDC/12-24 VAC Power Option
- Onboard USB and ScanView Programming Software
Specifications
Manufacturer
Input/Output
- Modbus RTU over RS-485, Two analog inputs (4-20 mA, ±10 V)
Display
- Upper display: 0.60" (15 mm) high
- Lower display: 0.46" (12 mm) high
- Both are 6 digits (-99999 to 999999), red LEDs
Display Intensity
- Eight user selectable intensity levels
Display Scan Rate
- Master/Snooper: 1/second to once every 99.9 seconds. Slave: Dependent on master device (e.g. PLC)
Front Panel
- IP65
- NEMA 4X
Programming Methods
- Four front panel buttons, digital inputs, PC and MeterView Pro software, Modbus registers
Isolation
- 4 kV Input/Output-to-Power-Line
- 500 V Input to Output or Output to P+ Supply
Environmental
- Operating: -40° to 65° C (-40° to 150° F)
- Storage: -40 to 85°C
- Relative humidity: 0 to 90% non-condensing
Connections
- Removable screw terminal blocks accept 12 to 22 AWG wire, RJ45 for external relays, digital I/O, and serial communication adapters
Enclosure
- 1/8 DIN, high impact plastic, UL 94V-0, color: black
Approvals & Certifications
- CE
- cULs
Mounting
- 1/8 DIN panel cutout required: 3.622" x 1.772" (92 mm x 45 mm)
- Two panel mounting bracket assemblies are provided
Overall Dimensions (W x H x D)
- 4.68" x 2.45" x 5.64" (119 mm x 62 mm x 143 mm)
Weight
- 9.5 oz (269 g)
