RD-64X Remote Display

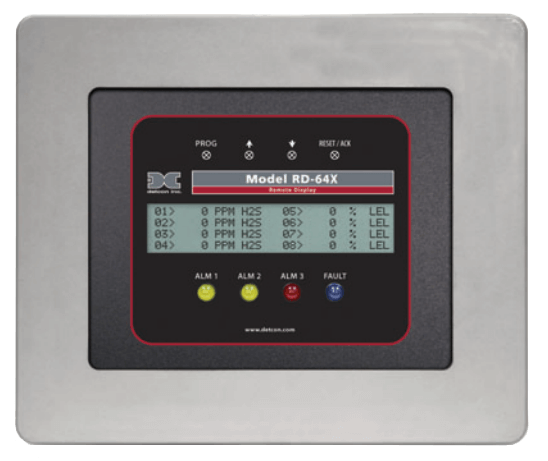

Manufacturer: Teledyne| DetconDetcon Model RD-64X is a read-only remote display unit designed to monitor real time status of a wide range of gas detection sensors and controllers.
The system is configurable for up to 64 channels and communicates using Modbus™ RS-485 RTU protocol.
The RD-64X features a nonintrusive magnetic interface and a backlit LCD that simplifies operation and configuration.
The remote display unit is field configurable and operates as a Modbus™ Master. During normal operation the RD-64X displays real-time status (i.e., channel number, gas type, unit of measure, and gas concentration) for up to eight field devices simultaneously.
The unit continuously auto cycles through each of the active channel screens for constant, up-to-date readings.
The RD-64X provides Alarm/Fault status indication on front panel LEDs. Alarm relay outputs can be configured as Latching/Nonlatching, Energized/De-energized and Silenceable/Non-silenceable on each unit using one Detcon RL-4 module.
Among the system’s unique features is a wireless option that can be used with Detcon’s RXT-320 SmartWireless® transceivers.
Enclosure options include NEMA 4X (Model RD-64X-N4X) powered by either 110/220 Vac or 24 Vdc using an internal power supply and NEMA 7 (Model RD-64X-N7) powered by 11.5-30 Vdc using an external voltage source.
Model RD-64X-N4X includes an external Reset/Acknowledge switch as standard (optional on Model RD-64X-N7).
Specifications
Manufacturer
Communication
- Modbus RTU
- RS-485
Consumption
- Less than 0.5 W (with Alarm LEDs & Backlight Inactive)
Enclosure, Body Material
- ABS
Environmental Protection
- IP66
- NEMA 4X Corrosion Resistant Weatherproof
- NEMA 7 Class I, Div. 1, Group C, D
Humidity
- 0 to 99 % Relative Humidity, Non-Condensing
Indication
- Alarm/Fault Status Indication on Front Panel LEDs
- LCD Display (1-1/8” by 5-3/4” Backlit)
Input
- 100-240 Vac, 45-65 Hz
- 11.5-30 Vdc (N7 Model)
- 20-30 Vdc (N4X Model)
- 64-Channels
Mounting
- Wall Mounted
Operating Temperature
- -20° to 70° C (-4° to 158° F)
Output
- < 3 W at 24 Vdc
- 5 A at 250 Vac
- 5 A at 30 Vdc
Output Format
- 4 Relay Outputs (Form C Single Pole Double Throw Contacts)
Relay Operation
- Energized or De-Energized
- Latching or Non-Lataching
- Silence Able or Non-Silence Able
RFI/EMI Protection
- Complies with EN 61000
Storage Temperature
- -40° to 85° C (-40° to 185° F)
Supply Voltage
- 110-220 Vac
- 24 Vdc
- Food & Beverage Processing
- Offshore Production Platforms
- Oil & Gas Drilling Rigs
- Oil & Gas Production Sites
- Pulp & Paper Mills
- Refining & Petrochemical
- Wastewater Treatment Plants
