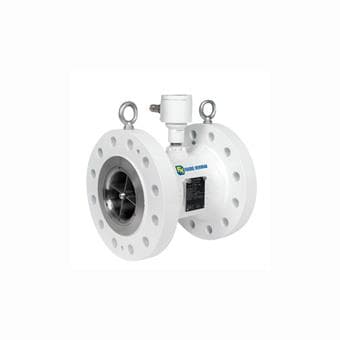

HELIFLU™ TZN CUS

Images are representations only.

The TZN CUS turbine meter is designed for custody transfer measurement of liquids containing DRA, wax, fibers, sand, chalk.

Features

Flow measurement accuracy +/- 0.15%
Viscosity range 0.1 to 350 cSt (higher upon request)
Repeatability 0.04 % (+/- 0.02 %)
Flowrate range 7 to 5500 m3/h
Meter size: 3″ to 18″
ISO 17025 Outstanding oil calibration facility
Suitable for high viscosities ( up to 350 cSt), higher upon request
Minimal sensitivity to density and viscosity variations
Superior linearity & repeatability over wide flow ranges
Addresses production life cycle changes:
- Downsizing“DS”
- Flexible Flowrates“FF”
Low pressure drop & energy consumption
Low downtime - customer serviceable
Easy to prove - ideal solution for Master Meters
Low pulse stability, thus reducing your prover sizing
Proven robust technology / Long term reliability
Complies with global certifications and standards

Custody Transfer Measurement
Oil Production Allocation
Pipeline Flow Measurement
Marine Terminal & Tanker Loading/Offloading
Lease Automatic Custody Transfer (LACT)
Master Meter Service
Storage Flow Process Management
Floating Storage and Offloading (FSO) & Floating Production Storage and Offloading (FPSO) Metering

Applications
