Transform a Precision Digital meters and controllers housed in an enclosure into an efficient display, control, and alarm system with the MOD-LH series.

It provides a light/horn to boost visibility of alarm conditions, a button that connects to the meter's digital input to control or reset the alarms, and hole drilling on the enclosure for both the light/horn and button to make user installation and wiring quick and easy. Enclosure and meter are sold separately.

The MOD-LH series is compatible with a wide range of Precision Digital NEMA 4 and NEMA 4X enclosures as well as meters and controllers including the ProVu, Trident, Loop Leader, and ConsoliDator+ Series.

Overall, the MOD-LH series is a simple solution for Precision Digital meters and controllers that adds audible and visual ways to indicate critical alarms.

Installation of the light/horn accessory voids all of the PD2 and PD4 agency approvals. The NEMA 4X and IP65 ratings are not affected.

• Light/Horn and Button Mounted and Wired to Meter

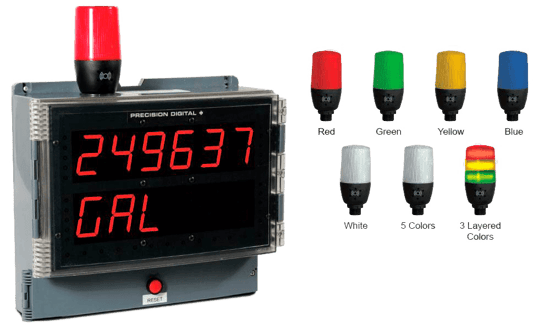

• Single Lights in Red, Green, Yellow, Blue, or White Available
• Units with One of Five User Selectable Lights Available
• Three Color Light Stack with Red, Yellow, and Green Lights Available
• Light/Horn Powered from Meter or External Power Supply
• Light and Horn Can be Controlled Independently Using Separate Relays
• Light/Horn Programmable for Variety of Reset Functions, Including:
  • Silence Horn at Any Time
  • Light Stays on Until Alarm Clears
• Light Can Be Wired to Flash or Stay Steady On
• IP65 Rated
• 85 dB Horn
• Operates from -5 to 40°C (23 to 104°F)
• Control Station Accessory For Remote Operation of Light/Horn Button
