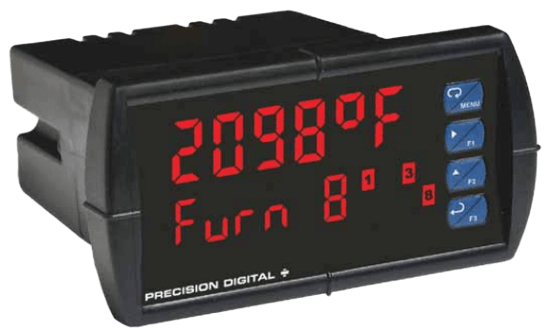

PD7000 ProVu Temperature Digital Panel Meter
Manufacturer: Precision Digital
PD7000 ProVu Temperature Digital Panel Meter
Manufacturer: Precision DigitalThe PD7000 is a member of the ProVu series of 1/8 DIN digital panel meters that accepts a direct temperature input from a wide range of temperature measurement devices (type J, K, T, E, R, S, B, N, and C thermocouples and 100 or 1000 Ω platinum, 10 Ω copper, 120 Ω nickel RTDs).
It displays the measured temperature in either degrees Fahrenheit or degrees Celsius on a dual-line, 6-digit display that is available with optional Sunbright® sunlight readable LEDs.
The PD7000 temperature indicator includes automatic cold junction compensation for thermocouples and the ability to average up to ten (10) RTD sensors.
Like all ProVu meters, the PD7000 temperature meter includes UL / C-UL listing and CE marking, a NEMA 4X front, and AC or DC power options.
ProVu meters can be equipped with up to four internal relays, a 4-20 mA output and Modbus® RTU serial communications.
The PD7000 can be programmed via the front panel pushbuttons or free MeterView® Pro software.
Features- J, K, T, E, R, S, B, N, C Thermocouples
- 100 or 1,000 Ω Platinum, 10 Copper, 120Ω Nickel RTDs
- 1° or 0.1° Resolution
- Averages up to 10 RTD Sensors
- Automatic Cold Junction Compensation
- NEMA 4X, IP65 Front
- Universal 85-265 VAC or 12/24 VDC Input Power
- Large Dual-Line 6-Character Display, 0.60" & 0.46"
- Programmable Displays & Function Keys
- Optional SunBright Display Models for Outdoor Applications
- 2 or 4 Relays + Isolated 4-20 mA Output Options
- External 4-Relay & Digital I/O Expansion Modules
- USB, RS-232, & RS-485 Serial Communication Options
- Modbus® RTU Communication Protocol Standard
- On-Board Digital Input
- Onboard USB and MeterView® Pro Programming Software
Specifications
Manufacturer
Display
- Upper display: 0.60" (15 mm) high
- Lower display: 0.46" (12 mm) high
- Both are 6 digits (-99999 to 999999), red LEDs
Resolution
- 1° (up to four digits) or 0.1° (up to five digits)
Display Intensity
- Eight intensity levels
Display Update Rate
- 5/second (200 ms)
Front Panel
- NEMA 4X, IP65
Power Options
- 85-265 VAC 50/60 Hz, 90-265 VDC, 20 W max
- 12-24 VDC ± 10%, 15 W max. Powered over USB for configuration only
Programming Methods
- Four front panel buttons, digital inputs, PC and MeterView Pro software, Modbus
Isolation
- 4 kV Input/Output-to-Power-Line
- 500 V Input to Output
Environmental
- Storage: -40 to 85°C
- Operating: -40° to 65° C (-40° to 150° F)
- Relative humidity: 0 to 90% non-condensing
Connection
- Removable screw terminal blocks accept 12 to 22 AWG wire, RJ45 for external relays, digital I/O, and serial communication adapters
Enclosure
- 1/8 DIN, high impact plastic, UL 94V-0, color: black (92 mm x 45 mm). Two panel mounting bracket assemblies are provided
Dimensions (W x H x D)
- 4.68" x 2.45" x 5.64" (119 mm x 62 mm x 143 mm)
Weight
- 9.5 oz (269 g)
Approvals & Certifications
- CE
- cULs
Communication
- Modbus® RTU
