ACS880-107 Inverter Unit
Manufacturer: ABB
Images are representations only.

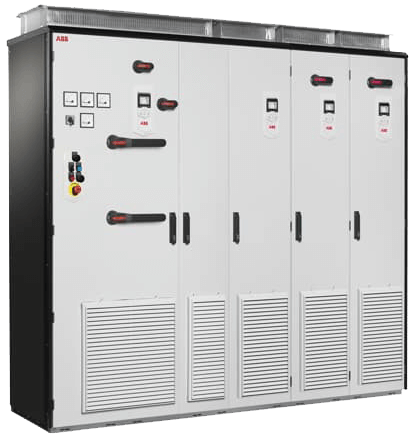

ACS880-107 Inverter Unit
Manufacturer: ABBBuilt on our all-compatible drive architecture these inverter units are designed to fulfil all your requirements for a common DC bus drive system.
The inverter units are DC supplied and have built-in capacitors for smoothing the DC voltage.
The electrical connection to the common DC bus is fuse protected.
An optional DC-switch can be selected to disconnect an individual inverter unit from the DC bus.
Each inverter unit comes with safe torque off (STO) as standard.
The units come in eight frame sizes, including the R8i inverter unit which can be parallel connected for building high power inverters in multidrives.
The R8i has speed-controlled cooling fans, quick connectors for motor cabling and wheels for easy installation and transport.
Features- Built on ABB's common drives architecture
- Compact inverter units provides small footprint for assembly
- Direct torque control (DTC) as standard
- IP22 class as a standard and IP42 and IP54 as an option
- Integrated safety including STO as standard
- Intuitive control panel with USB port
- Supports a wide range of fieldbus protocols, I/O and encoder options
- Extensive selection of mechanical and electrical accessories
- Customized product that fulfills your needs
Specifications
Manufacturer
Voltage & Power Range
- Mains: 3-Phase, UN3 380-415 V, +10 %/-10 %
- Motor: 3-Phase output Voltage 0 to UN3 /UN5 /UN7
- Mains: 3-Phase, UN7 525-690 V, +10 %/-10 %
- Mains: 3-Phase, UN3 380-500 V, +10 %/-10 %
- Mains: 1.5 to 6,000 kW
Frequency
- Motor: 0 to ± 598 Hz
- Mains: 50/60 Hz ± 5 %
Motor Control
- Direct torque Control (DTC)
Certifications & Approvals
- TÜV
- RCM, EAC
- CSA
- cULus
- RoHS
- ATEX
- EMC
- LVD
- CE
Stroage / Transport Temperature
- -40° to 70° C
Operating Temperature
- Air-Cooled: 40° to 50° C with Derating of 1 %/1° C
- Air-Cooled: 0° to 40° C, No Frost Allowed
Cooling Type
- Dry Clean Air Cooling
Altitude
- 1,000 to 4,000 m, with derating of 1 %/100 m
- 0 to 1,000 m, without derating
Environmental Protection
- IP22
- IP42
- IP54
Humidity
- 5 % to 95 % Relative Humidity, no condensation
Documentation
Certificate
- ACS880 with FPTC-01 (+L536) TUV NORD certificate for PTC Protection (Safe Motor Temperature, SMT) function pdf 125 KB
- ACS880 with FPTC-02 (+L537 +Q971) TUV NORD certificate for PTC Protection (Safe Motor Temperature, SMT) function pdf 128 KB
- ACS880 with FPTC-02 (+L537 +Q971) TUV NORD certificate for PTC Protection (Safe Motor Temperature, SMT) function pdf 140 KB
- ACS880 with FPTC-02 ATEX certificate, ATEX-certified motor thermistor protection (+L537 +Q971) pdf 450 KB
- ACS880-x4 -04XT -x04 -xx04 -x7 -x07 -xx07 RMRS marine type approval certificate pdf 179 KB
- ACS880-x7 -x07 -xx07 ABS marine type approval certificate pdf 47 KB
- ACS880-x7 -x07 -xx07 BV marine type approval certificate over 50kW pdf 404 KB
- ACS880-x7 -x07 -xx07 CCS marine type approval certificate pdf 1.8 MB
- ACS880-x7 -x07 -xx07 DNV GL marine type approval certificate pdf 441 KB
- ACS880-x7 -x07 -xx07 LR marine type approval certificate pdf 598 KB
- ACS880/ACS880LC TUV NORD STO certificate pdf 1.7 MB
- BS EN ISO 9001:2008 and The TickIt Guide Certificate, ABB Helsinki pdf 393 KB
- Certificate of Qualification, ABB Oy Drives, Helsinki - CSA International pdf 638 KB
- ISO 9001:2015 Quality Certificate and ISO 14001:2015 Environmental Certificate, ABB Oy pdf 327 KB
- KIWA Inspecta Certificate for ACS800, ACS880, ACS580 drive modules lifting equipment pdf 140 KB
- KIWA Inspecta Certificate for ACS800LC, ACS880, ACS880LC, ACS580 cabinet-built drives lifting equipment pdf 169 KB
- OHSAS 18001:2007 Occupational Health and Safety Certificate, ABB Oy pdf 324 KB
- ACS880-07/-17/-37, -07LC, -17LC, -37LC, -107, -107LC and multidrives ATEX certificate, ATEX-certified motor thermal protection function +L513/+L514 +Q971 pdf 449 KB
Manual
- ACS880 +C132 marine type-approved cabinet-built drives supplement pdf 719 KB
- ACS880 Cavitation detection control program Supplement pdf 1.5 MB
- ACS880 multidrive cabinets and modules electrical planning instructions pdf 5.5 MB
- ACS880 multidrive cabinets and modules safety instructions pdf 1.8 MB
- ACS880 Primary control program Firmware manual pdf 5.1 MB
- ACS880 Primary control program Firmware manual - Drive composer version pdf 5.5 MB
- ACS880 synchronous machine control application guide pdf 3.7 MB
- ACS880 with primary control program Quick start-up guide pdf 2.1 MB
- ACS880-107 inverter units hardware manual pdf 21.5 MB
- Adaptive programming Application Guide pdf 1.5 MB
- ATEX-certified thermal motor protection functions for cabinet-built ACS880 drives (+L513+Q971 and +L514+Q971) User's manual pdf 1.8 MB
- Drive composer start-up and maintenance PC tool user's manual pdf 20.8 MB
- EDS Export User's manual pdf 515 KB
- PSL2 data logger file Signals and data word description pdf 3.9 MB
