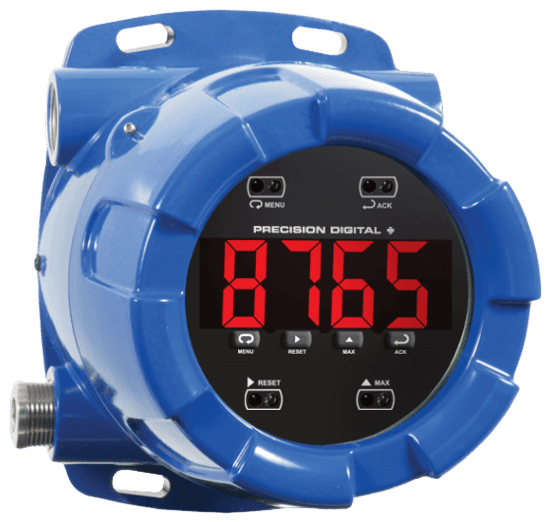

PD8-765 ProtEX-MAX Explosion-Proof Process & Temperature Meter
Manufacturer: Precision Digital
Images are representations only.
PD8-765 ProtEX-MAX Explosion-Proof Process & Temperature Meter
Manufacturer: Precision DigitalThe PD8-765 ProtEX-MAX is an explosion-proof version of the popular Trident X2 process and temperature meter. It can satisfy a wide variety of process applications.
The PD8-765 can be field programmed to accept process voltage (0-5 V, 1-5 V, etc) and current (4-20 mA) inputs, 100 Ohm RTDs, and the four most common thermocouples.
It is housed in an IP68 NEMA 4X rated explosion-proof die cast aluminum enclosure and is a fully approved product carrying FM, CSA, ATEX, and IECEx approvals.
There are two power options for the ProtEX-MAX: 85 to 265 VAC or 12-36 VDC and the AC powered version can provide 24 VDC to power the transmitter if needed.
Programming and setup can be performed with the four SafeTouch™ through- glass buttons, free MeterView™ software, or using the Copy function.
Features- Modern, Sleek and Practical Enclosure
- Display Mountable at 0°, 90°, 180°, & 270° Degrees
- Explosion-proof, IP68, NEMA 4X Enclosure
- Large 1.2" 4-Digit Display
- SafeTouch® Through-Glass Button Programming
- Linear or Square Root with Low-Flow Cutoff
- Operating temperature range of between -40°C and 65°C
- Max/Min Display
- Universal Power Supply 85-265 Vac
- 12-36 Vdc/12-24 Vac Power Option
- 2 Relays + 4-20 mA Output Option
- 24 Vdc @ 200 mA Transmitter Power Supply Options
- USB, RS-232, & RS-485 Serial Communication Options
- Free Modbus® RTU & LabVIEW™ Driver
- Free MeterView® Software - Configuration & Data Acquisition
- Sunlight Readable Display
Specifications
Manufacturer
Accuracy
- ± 0.05 %
Approvals & Certifications
- ATEX, II 2 GD Ex d IIC T* Gb Ex Tb IIIC T90° C Db
- CSA Class I, Div. 1, Groups B, C, D, Class II, Div. 1, Groups E, F, G Class III, Div. 1, Class I, Zone 1 Ex d IIC Zone 21 Ex Tb IIIC T90° C
- FM Class I, Div. 1, Groups B, C, D Class II, Div. 1, Groups E, F, G Class III, Div. 1, T5/T6 Class I, Zone 1, AEx d, IIC Gb T5/T6 Zone 21, AEx Tb IIIC T90° C
- IEC Ex d IIC T* Gb Ex Tb IIIC T90° C Db
Communication
- Modbus
Display
- 4-Digit LED
Enclosure, Body Material
- Aluminum
Environmental Protection
- IP66
- IP68
- NEMA 4X
- NEMA 7
- NEMA 9
Input
- ± 10 VCD
- 0-20 mA
- 4-20 mA
Operating Temperature
- -40° to 65° C (-40° to 150° F)
Power Supply
- 12-36 Vdc
- 85-265 Vac
Resolution
- 1°
