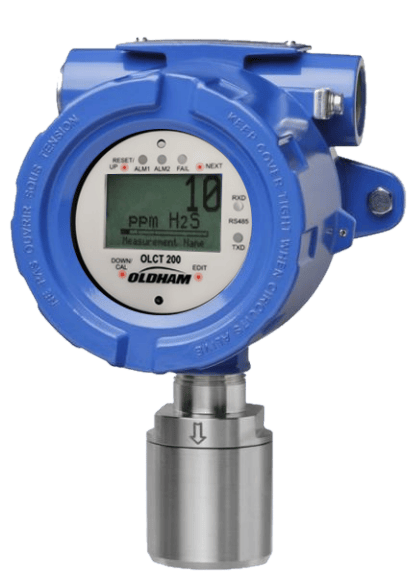

OLCT 200 Fixed Gas Detection
Manufacturer: Teledyne | Oldham
Images are representations only.
OLCT 200 Fixed Gas Detection
Manufacturer: Teledyne | OldhamSpecifications
- Detection of explosive gases, toxic gases, or oxygen
- Non-Intrusive calibration
- Smart sensors
- HART communication
- Programmable relays
- Hot swappable sensors (IS versions)
- 2-wire, 3-wire, Modbus, or wireless
Specifications
Manufacturer
Alarm
- 3 Alarm Relays
Approvals & Certifications
- SIL 2 EN 61508
- ATEX
- CSA (C,US) Class I, Div. 1, 2 (Grade A, B, C, D - 2-Wire Configuration Only) (Groups B, C, D - 3-Wire Configuration Only)
- ISO 9001: 2008, 14001: 2004
Communication
- Output Signal: HART Protocol
- Output Signal: RS-485 Modbus (9,600 Baud)
- Output Signal: Wireless (900 MHz or 2.4 GHz)
Consumption
- Power (Catalytic, IR, PID Sensors): 100 mA at 24 Vdc
- Power (EC Sensor): 25 mA at 24 Vdc
- Power (For Added Arctic Heaters): 210 mA at 24 Vdc
- Power (For Added Energized Relays): 120 mA at 24 Vdc
- Power (For Added RS-485 Modbus): 20 mA at 24 Vdc
Display
- Backlit LCD (2-Wire Models Do Not have Backlight)
Electrical Connectors
- 2-Wire
- 3-Wire
- 4-Wire
- 6-Wire
- Shielded Cable
- Wireless
Enclosure, Body Material
- Epoxy Coated Aluminum
Environmental Protection
- IP66
- NEMA 4X
Frequency
- Wireless: 2.4 GHz FHSS
- Wireless: 900 MHz FHSS
Input
- 10-30 Vdc
Loop Resistance
- Cable: 500 ohms at 24 Vdc, Max.
- Cable: 750 ohms at 24 Vdc, Max.
Operating Temperature
- -40° to 60° C (-40° to 140° F)
Output
- 4-20 mA (Analog), 2-Wire (Sink), 3-Wire (Source)
Power
- Wireless: 0.01 to 1 W Adjustable Transit Power (900 MHz Only)
Range
- Indoor: 0 to 3,000 feet (0 to 900 metres)
Relay Output
- Alarm Relay: 5 A at 30 Vdc / 240 Vac (Resistive)
Sensor, Probe Material
- Sensor: 316 Stainless Steel
Sensor, Probe Type
- Sensor (Combustible Gas): Catalytic
- Sensor (Combustible Gas): Infrared
- Sensor (Toxic/Oxygen): Electrochemical
- Sensor (Toxic/Oxygen): Photo Ionization Detector (PID)
- Food & Beverage Production
- Municipal Water
- Offshore Drilling
- Oil & Gas Industry
- Petrochemical Industry
- Utilities & Power
- Waste Treatment
