ACS880-17 Cabinet-Built Regenerative Single Drive
Manufacturer: ABB
Images are representations only.

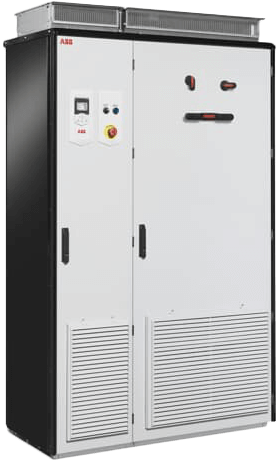

ACS880-17 Cabinet-Built Regenerative Single Drive
Manufacturer: ABBOur all-compatible regenerative drives are everything you need for a regenerative operation.
The compact ACS880-17 captures and utilizes energy which results in cost savings for the user.
With regenerative functionality, the braking energy of the motor is returned back to the drive and distributed forward to the supply network.
This way, the braking energy is not wasted as heat.
In comparison with other braking methods, such as mechanical and resistor braking, the ACS880-17 brings much more energy savings.
Features- Power range 45 to 3200 kW
- Built on ABB’s common drives architecture
- IP22, IP45 and IP54 enclosure classes
- Direct torque control (DTC) as standard
- LCL line filter built-in
- Main switch and fuses
- Cabling solution include bottom and top entry and exit
- Integrated safety including STO as standard
- Supports a wide range of fieldbus protocols, I/O and encoder options
- Flexible I/O and encoder options
Specifications
Manufacturer
Voltage & Power Range
- Mains: 3-Phase, UN3 380-415 V, ± 10 %
- Motor: 3-Phase output Voltage 0 to UN2 /UN3 /UN5 /UN7
- 45 to 3,200 kW
- Mains: 3-Phase, UN7 525-690 V, ± 10 %
- Mains: 3-Phase, UN5 380-500 V, ± 10 %
Frequency
- Motro: 0 to ± 598 Hz
- Mains: 50/60 Hz ± 5 %
Efficiency
- 97 % at nominal Power
Motor Control
- Direct torque Control (DTC)
Certifications & Approvals
- UL, CSA
- TÜV
- RCM, EAC
- RoHS
- ATEX
- EMC
- LVD
- CE
Storage / Transport Temperature
- -40° to 70° C
Operating Temperature
- 40° to 50° C with Derating of 1 %/1° C
- 0° to 40° C as Standard
Cooling Type
- Dry Clean Air
Altitude
- 1,000 to 4,000 m without derating with derating of 1 %/ 100 m
- 0 to 1,000 m without derating
Humidity
- 5 % to 95 % Relative Humidity, no condensation
Environmental Protection
- IP22
- IP42
- IP54
Documentation
Brochure
Catalog
Certificate
- ACS880 with FPTC-01 (+L536) TUV NORD certificate for PTC Protection (Safe Motor Temperature, SMT) function pdf 125 KB
- ACS880 with FPTC-02 (+L537 +Q971) TUV NORD certificate for PTC Protection (Safe Motor Temperature, SMT) function pdf 128 KB
- ACS880 with FPTC-02 ATEX 2014/34/EU & MD 2006/42/EC EU DoC pdf 107 KB
- ACS880 with FPTC-02 ATEX certificate, ATEX-certified motor thermistor protection (+L537 +Q971) pdf 450 KB
- ACS880-07/-17/-37, -07LC, -17LC, -37LC, -107, -107LC and multidrives ATEX certificate, ATEX-certified motor thermal protection function +L513/+L514 +Q971 pdf 449 KB
- ACS880-x4 -04XT -x04 -xx04 -x7 -x07 -xx07 RMRS marine type approval certificate pdf 179 KB
- ACS880-x4 (frames R8i), -04XT, -04FXT, -x7(LC), -x04, -x04LC, -x07 and multidrives, EU Declaration of Conformity pdf 3.9 MB
- ACS880-x7 -x07 -xx07 ABS marine type approval certificate pdf 47 KB
- ACS880-x7 -x07 -xx07 BV marine type approval certificate over 50kW pdf 404 KB
- ACS880-x7 -x07 -xx07 CCS marine type approval certificate pdf 1.8 MB
- ACS880-x7 -x07 -xx07 DNV GL marine type approval certificate pdf 441 KB
- ACS880-x7 -x07 -xx07 LR marine type approval certificate pdf 598 KB
- ACS880/ACS880LC TUV NORD STO certificate pdf 1.7 MB
- ATEX Production Quality Assurance Notification, EESF 19 ATEX Q 013, ABB LV Drives Helsinki pdf 436 KB
- Declaration of Conformity, Machinery Directive 2006/42/EC, ACS880-04/-14/-34 (nxR8i), -04XT, -04FXT, -104, -07 -17, -37, -104LC, -17LC, -37LC, -107LC, multidrives pdf 3.2 MB
- Declaration on Conformity, ATEX Directive, ACS880-07/-17/-37/-107/-07CLC/-17LC/-37LC/-107LC, ATEX certified motor thermal protection function, +L513/+L514 +Q971 pdf 72 KB
- EU Declaration of Conformity LVD 2014/35/EU and EMCD 2014/30/EU, ACS880-07, -07LC, -07CLC, -17, -17LC, -37, -37LC pdf 1.5 MB
- EU Declaration of Conformity, ACS880, ACS580, ACS800 drive modules lifting equipment pdf 128 KB
- EU Declaration of Conformity, ACS880, ACS580, ACS800LC cabinet built drives lifting equipment pdf 62 KB
- KIWA Inspecta Certificate for ACS800, ACS880, ACS580 drive modules lifting equipment pdf 140 KB
- KIWA Inspecta Certificate for ACS800LC, ACS880, ACS880LC, ACS580 cabinet-built drives lifting equipment pdf 169 KB
- Production Quality Assurance Notification, Eurofins 19 ATEX Q025, ABB Drives Estonia pdf 435 KB
- EN61800 Declaration of Conformity ACS880 07 17 37 Rev 02 14 02 2018.pdf 348 KB
Manual
- ACS800 and ACS880 RSYC-01 Synchronizing Unit User's Manual pdf 1.8 MB
- ACS880 +C132 marine type-approved cabinet-built drives supplement pdf 719 KB
- ACS880 Cavitation detection control program Supplement Summary: Program Features, Parameters, Fault tracing pdf 1.5 MB
- ACS880 IGBT supply control program firmware manual pdf 6.2 MB
- ACS880 IGBT supply control program firmware manual - Drive composer version pdf 5.2 MB
- ACS880 Primary control program Firmware manual pdf 5.1 MB
- ACS880 Primary control program Firmware manual - Drive composer version pdf 5.5 MB
- ACS880-17 drives (160 to 3200 kW) hardware manual pdf 16.7 MB
- ACS880-17 drives (45 to 400 kW, 60 to 450 hp) hardware manual pdf 61.3 MB
- ATEX-certified thermal motor protection functions for cabinet-built ACS880 drives (+L513+Q971 and +L514+Q971) User's manual pdf 1.8 MB
- Bypass connection for ACS880-07, -17, and 37 drives Option description pdf 711 KB
- Emergency stop, configurable stop category 0 or 1 (+Q978) for ACS880-07/07LC/17/17LC/37/37LC drives user's manual pdf 1.3 MB
- Emergency stop, configurable stop category 0 or 1 (option +Q979) for ACS880-07/07LC/17/17LC/37/37LC drives user’s manual pdf 1.1 MB
- Emergency stop, stop category 0 (option +Q963) for ACS880-07/07LC/17/17LC/37/37LC drives user's manual pdf 936 KB
- Emergency stop, stop category 1 (option +Q952) for ACS880-07/07LC/17/17LC/37/37LC drives user’s manual pdf 1.0 MB
- Emergency stop, stop category 1 (option +Q964) for ACS880-07/07LC/17/17LC/37/37LC drives user’s manual pdf 985 KB
- Prevention of unexpected start-up (option +Q957) for ACS880-07/07LC/17/17LC/37/37LC drives user’s manual pdf 933 KB
- PSL2 data logger file Signals and data word description pdf 3.9 MB
- Safely-limited speed with the encoder interface (option +Q965) for ACS880-07/07LC/17/17LC/37/37LC drives user's manual pdf 1.2 MB
- Single drive cabinets and moduels electrical planning instructions pdf 1.0 MB
- Drive composer start-up and maintenance PC tool user's manual pdf 20.8 MB
- Emergency stop, stop category 0 (option +Q951) for ACS880-07/07LC/17/17LC/37/37LC drives User’s manual pdf 1,012 KB
- Prevention of unexpected start-up (option +Q950) for ACS880-07/07LC/17/17LC/37/37LC drives user’s manual pdf 979 KB
