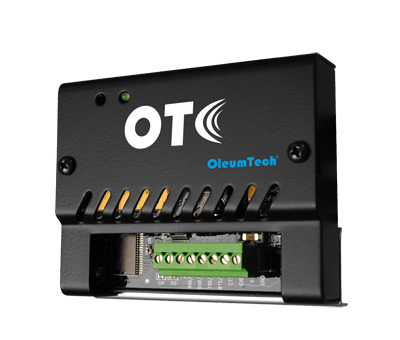

DH2 Wireless Gateway
Manufacturer: OleumTech
Images are representations only.
1x RS232/485 Port: Modbus Master/Slave, LevelMaster Slave, or ROC Link Master
Price
Request a Quote
Stock
In Stock
The OleumTech® DH2 Wireless Gateway plays an integral role in the OTC Wireless Sensor and I/O Network.
It possesses the ability to aggregate data from OTC wireless transmitters and I/O modules onto its 1920-point register holding table.
Third-party devices can access the data over the Modbus or LevelMaster ASCII protocol.
With the provided RS232/RS485 configurable Serial port, the DH2 can virtually interface with any third-party Modbus device either as a Modbus master or slave device.
The DH2 can also be configured as a LevelMaster ASCII slave or ROC Link master.
OleumTech offers Serial I/O Expansion Modules for use with the DH2 for added functionality.
Deploy multiple gateways to the OTC platform, creating a custom, highly scalable network.
The gateways have the ability to communicate with one another.
Leverage the peer-to-peer technology and funnel data to the primary gateway, optimizing network efficiency and/or designing an extremely flexible I/O mapping system across the entire wireless network.
With the provided RS232/RS485 configurable Serial port, the DH2 can virtually interface with any third-party Modbus device either as a Modbus master or slave device.
The DH2 can also be configured as a LevelMaster ASCII slave or ROC Link master.
OleumTech offers Serial I/O Expansion Modules for use with the DH2 for added functionality.
Features- Wirelessly gather/distribute sensor data
- Map I/O anywhere within the network
- Modbus Master/Slave functionality
- 1 configurable Serial/RTU port (RS232/RS485)
- -40 ˚C to 80 ˚C (-40 ˚F to 176 ˚F)
- 900 MHz / 915 MHz / 2.4 GHz / 868 MHz
- Secure AES encryption
- Class I, Division 2 (Zone 2) certified
- Advanced peer-to-peer (P2P) communication functionality
Specifications
Manufacturer
Device Functionality
- Serial Wireless Gateway
Serial Interfaces
- RTU Port (RS-232/RS-485) Terminal Block
- Modbus Master/Slave, LevelMaster ASCII Slave, ROC-Link Master (Supports Opcodes 17 and 10)
Wireless Communications
- Radio Band: ISM Band (License-Free)
- 900 MHz / 915 MHz: FHSS, FSK, AES Encryption 256-bit (900 MHz), 128-bit (915 MHz)
- 2.4 GHz: DSSS, AES Encryption 128-bit
- 868 MHz: LBT-AFA, AES Encryption 128-bit
Certifications & Approvals
- FCC Part 15 (USA), IC ICES-003 (Canada), ACMA (Australia)
- AS/NZS CISPR 32 (Australia), EN 55032 & EN 55024 (EU)
- Class I, Div. 2, Groups A, B, C, D T4, Ex nA IIC T4
- Class I Zone 2 AEx nA IIC T4
- ATEX: Sira 14ATEX4143X, II 3 G Ex nA IIC T4 Gc
- IECEx: SIR 13.0055X, Ex nA IIC T4 Gc
Mounting
- DIN Rail Mountable with Height Adjustability
