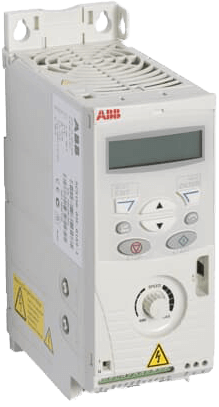

ACS150 Micro Drive

Manufacturer: ABB
Images are representations only.

ACS150 Micro Drive

Manufacturer: ABB
Request a Quote Favorite
Take smooth performance to the next level with the wide power range and functionality of ACS150.

Available in both single and three phase supplies.

Many functions are standard, such as PID control, a built-in brake chopper and EMC filter.

An optional FlashDrop drive configuration tool makes configuring unpowered drives quick and easy.
Features
  • Power range 0.37 to 4 kW/0.5 to 5 Hp
  • IP20 enclosure
  • Scalar control
  • Integrated user interface and potentiometer
  • Built-in brake chopper
  • Built-in EMC filter for 2nd environment

Specifications

Manufacturer

Voltage & Power Range

  • Mains: 1-Phase, 200-240 V ± 10 % 0.37 to 2.2 kW (0.5 to 3 hp)
  • Auxiliary: 24 Vdc ± 10 %, Max. 200 mA
  • Motor: 3-Phase, from 0 to Usupply
  • Mains: 3-Phase, 380-480 V ± 10 % 0.37 to 4 kW (0.5 to 5 hp)
  • Mains: 3-Phase, 200-240 V ± 10 % 0.37 to 2.2 kW (0.5 to 3 hp)

Frequency

  • Motor: 0 to 500 Hz
  • Mains: 48 to 63 Hz

Acceleration / Deceleration Time

  • 0.1 to 1,800 s

Environmental Protection

  • NEMA 1 optional
  • IP20

Humidity

  • < 95 % Relative Humidity, Non-Condensing

Ambient Temperature

  • -10° to 40° C (14° to 104° F), No Frost Allowed, 50° C (122° F) with 10 % derating

Input Impedance

  • 2.4 kΩ

Certifications & Approvals

  • Environmental system ISO 14001
  • Quality assurance system ISO 9001
  • EMC Directive 2004/108/EC with Supplements
  • Machinery Directive 2006/42/EC
  • Low Voltage Directive 2006/95/EC with Supplements
  • UL, cUL, CE, C-Tick and GOST R approvals
  • RoHS compliant

  • OEMs
  • Machinery Builders
  • Panel Builders
