DM-600 Series Gas Sensors
Manufacturer: Teledyne| DetconDM-600 Series Gas Sensors
Manufacturer: Teledyne| DetconDetcon Model DM-600 Series Sensor is designed to detect and monitor gases in air over the range 0-100 ppm.

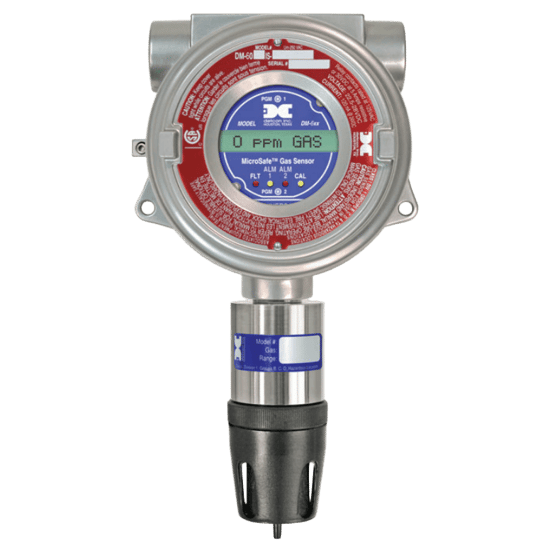

The sensor assembly consists of an electrochemical fuel cell mounted in an Intrinsically Safe stainless steel and ABS plastic housing that includes a splashguard with integral cal port, a signal conditioning control transmitter circuit, a base connector board and an explosion proof junction box.
The Intrinsically Safe sensor housing design allows direct contact of the target gas to the electrochemical sensor, thus maximizing response time, detectability and repeatability.
And because the Intrinsically Safe housing design does not use a stainless steel flame arrestor, it eliminates inaccurate readings due to target gas absorption.
Specifications
Manufacturer
NPT Connection
- 3/4" NPT Female
Display
- Backlit LCD Display
Humidity
- 5 to 95 % RH, Non-Condensing
Consumption
- 2.9 W at 24 Vdc
Enclosure, Body Material
- ABS Plastic Housing
- Intrinsically Safe Stainless Steel Assembly
Environmental Protection
- Intrinsically Safe
- Electrical Classification: Explosion-proof
- IP66
- NEMA 4X
Operating Temperature
- -40° to 50° C (-40° to 122° F)
Repeatability
- ± 2 % of Full Scale
Input
- 22.5-28 Vdc
Approvals & Certifications
- CSA Approved: Class I, Div. 1, Groups B, C, D
- ISO 9001: 2008
- NRTL
- UL Approved: Class I, Div. 1, Groups B, C, D
Output
- 4-20 mA DC (Linear)
Materials of Construction
- Aluminum Junction Box
- Stainless Steel Junction Box
Measuring Range
- 0 to 1 ppm: Ozone, Hydrazine. Fluorine, Arsine
- 0 to 2 ppm: Germane
- 0 to 5 ppm: Phosphine, Bromine, Diborane
- 0 to 10 ppm: Nitrogen Dioxide, Hydrogen Fluoride, Chlorine
- 0 to 20 ppm: Sulfur Dioxide
- 0 to 30 ppm: Hydrogen Cyanide, Hydrogen Chloride, Hydrogen Bromide
- 0 to 50 ppm: Silane, Chlorine Dioxide
- 0 to 100 ppm: Nitric Oxide, Hydrogen Sulfide, Hydrogen, Carbon Monoxide, Methyl Mercaptan, Methanol, Formaldehyde, Butadiene, Ethyl Mercaptan, Ethylene Oxide, Ethylene, Acetylene
Span Effect
- < 1 % Signal Loss Per Month
- < 2 % Signal Loss Per Month
- < 3 % Signal Loss Per Month - Span Drift
- < 5 % Signal Loss Per Month - Span Drift
- < 10 % Signal Loss Per Month
- < 5 % Signal Loss Per Year
Response Time
- T90 ≤ 10 - 140 seconds
Sensor, Probe Type
- Electrochemical Fuel Cell
Indication
- LED Indicators for Fault & Cal Status
Electrical Connectors
- Junction Box
Communication
- Modbus Via RS-485
Relay Output
- 3 Relays (Alarm 1, 2, Fault, Contacts 5 A)
Calibration
- < 3 minutes
Documentation
Data Sheets
- Data Sheet - Detcon DM-600-AsH₃ Arsine Sensor pdf 222 KB
- Data Sheet - Detcon DM-600-B₂H₆ Diborane Sensor pdf 222 KB
- Data Sheet - Detcon DM-600-Br₂ Bromine Sensor pdf 222 KB
- Data Sheet - Detcon DM-600-C₂H₂ Acetylene Sensor pdf 210 KB
- Data Sheet - Detcon DM-600-C₂H₄ Ethylene Sensor pdf 211 KB
- Data Sheet - Detcon DM-600-C₂H₄O Ethylene Oxide Sensor pdf 214 KB
- Data Sheet - Detcon DM-600-C₂H₅OH Ethanol Sensor pdf 202 KB
- Data Sheet - Detcon DM-600-C₂H₅SH Ethyl Mercaptan Sensor pdf 203 KB
- Data Sheet - Detcon DM-600-C₄H₆ Butadiene Sensor pdf 201 KB
- Data Sheet - Detcon DM-600-CH₂O Formaldehyde Sensor pdf 213 KB
- Data Sheet - Detcon DM-600-CH₃OH Methanol Sensor pdf 214 KB
- Data Sheet - Detcon DM-600-CH₃SH Methyl Mercaptan Sensor pdf 211 KB
- Data Sheet - Detcon DM-600-Cl₂ Chlorine Sensor pdf 222 KB
- Data Sheet - Detcon DM-600-ClO₂ Chlorine Dioxide Sensor pdf 223 KB
- Data Sheet - Detcon DM-600-CO Carbon Monoxide Sensor pdf 222 KB
- Data Sheet - Detcon DM-600-F₂ Fluorine Sensor pdf 221 KB
- Data Sheet - Detcon DM-600-GeH₄ Germane Sensor pdf 212 KB
- Data Sheet - Detcon DM-600-H₂ Hydrogen Sensor pdf 222 KB
- Data Sheet - Detcon DM-600-H₂S Hydrogen Sulfide Sensor pdf 222 KB
- Data Sheet - Detcon DM-600-HBr Hydrogen Bromide Sensor pdf 223 KB
- Data Sheet - Detcon DM-600-HCl Hydrogen Chloride Sensor pdf 223 KB
- Data Sheet - Detcon DM-600-HCN Hydrogen Cyanide Sensor pdf 223 KB
- Data Sheet - Detcon DM-600-HF Hydrogen Fluoride Sensor pdf 222 KB
- Data Sheet - Detcon DM-600-N₂H₄ Hydrazine Sensor pdf 202 KB
- Data Sheet - Detcon DM-600-NO Nitric Oxide Sensor pdf 218 KB
- Data Sheet - Detcon DM-600-NO₂ Nitrogen Dioxide Sensor pdf 222 KB
- Data Sheet - Detcon DM-600-O₃ Ozone Sensor pdf 201 KB
- Data Sheet - Detcon DM-600-PH₃ Phosphine Sensor pdf 222 KB
- Data Sheet - Detcon DM-600-SiH₄ Silane Sensor pdf 222 KB
- Data Sheet - Detcon DM-600-SO₂ Sulfur Dioxide Sensor pdf 222 KB
