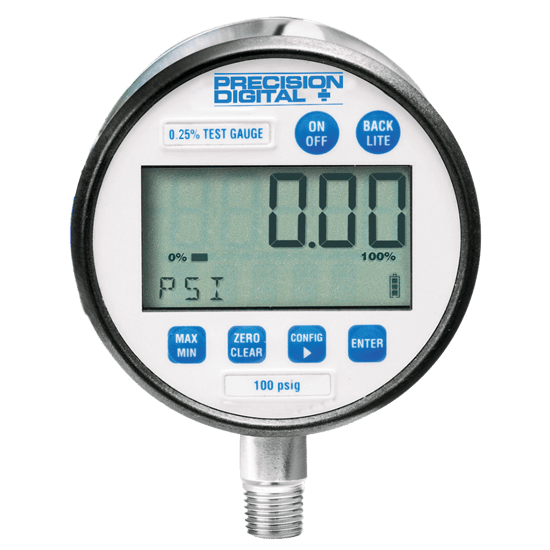

PD233/PD243/PD253 Digital Test Pressure Gauge
Manufacturer: Precision Digital
Images are representations only.
PD233/PD243/PD253 Digital Test Pressure Gauge
Manufacturer: Precision DigitalSpecifications
- Vacuum to 7,000 psi
- High accuracy 0.05% Full Scale Total Error Band
- Available with 0.1% or 0.25% Full Scale accuracy
- 5 digit LCD, % bar graph & battery level indication
- Large 0.66" (16.7 mm) display in compact 3" case
- Battery powered
- Rugged & portable design
- Stainless steel case & socket welded
- Twelve engineering units
- Max & Min pressure
- Password protected
Specifications
Manufacturer
Pressure Range
- Vacuum to 7,000 psi & compound
Display
- 0.66" (17 mm) 5 digit LCD, 99999
Accuracy
- 0.05%, 0.10% or 0.25% FS Terminal Point
Approvals & Certifications
- CE
Operating Temperature
- -18° to 62° C (0° to 144° F)
Storage Temperature
- -40° to 82° C (-40° to 180° F)
Relative Humidity
- 0 to 90 % Non-Condensing
Mounting
- Panel standard
- Stem
Case
- Material: 300 Series stainless steel
- Case protection: 300 Series stainless steel protective cover and protective carrying pouch included
- Size: 3" Diameter
- Finish: Electropolished
- Rating: NEMA 4X, IP65
Wetted Materials
- 316 Stainless Steel
Socket
- Size: 1/4" NPT
- Location: Lower connection, 6 o'clock
Power
- Three AAA alkaline batteries included
