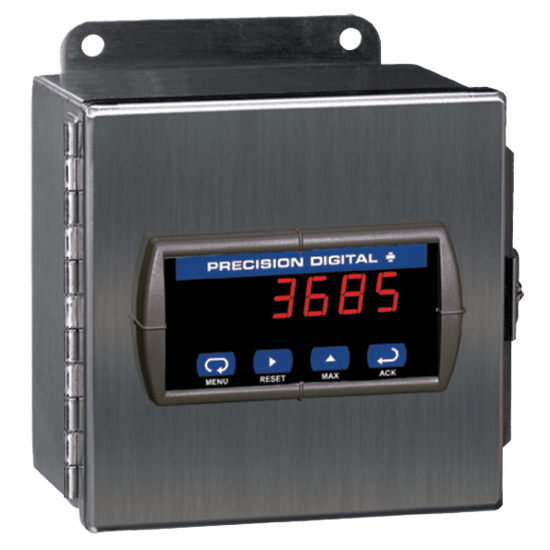

The PDA2600 series of stainless steel UL Type / NEMA 4X enclosures for 1/8 DIN Digital Panel Meters provide a convenient way to mount up to six Precision Digital meters to walls and other vertical structures.

Many of these enclosures also have room for additional devices like a Light/Horn and a 24 V transmitter power supply.

These enclosures come pre-cut with horizontal or vertical 1/8 DIN cutouts or they can be ordered with no cutouts.

The meters are mounted in the door of the enclosure thus allowing for programming and operation of the meter.

No additional mounting hardware other than screws is needed.

The door is hinged and secured with latches.

Enclosures, meters and accessories are ordered and packaged separately.

• House up to 6 Meters
• 16-Gauge Type 304 Stainless Steel
• 14-Gauge Type 304 Stainless Steel
• 1/8 DIN Cutout(s) Pre-Cut
• Horizontal, Vertical, or No Cutouts
• UL Type 4, 4X and 12
• NEMA 4, 4X, 12, and 13
• Cover Secured with Screwed Latches
• Hinged Door
• Meter Mounted in Cover
• Sub-Panels Available
• Mounting Holes Integral to Enclosure
• PDA1024-01 24 VDC Power Supply Available
• UL Listed, CSA Certified
• Light/Horn & Button
