PD2-6080 Helios Modbus Scanner with Dual Analog Inputs
Manufacturer: Precision Digital
Images are representations only.
PD2-6080 Helios Modbus Scanner with Dual Analog Inputs
Manufacturer: Precision DigitalGo with the Helios PD2-6080 when you have multiple: up to 16, Modbus registers you want to display on a single large display meter.
The PD2-6080 can also accept two 4-20 mA signals.
The PD2-6080 can be programmed as a Modbus RTU Master, Slave or Snooper allowing it to work in just about any Modbus application.

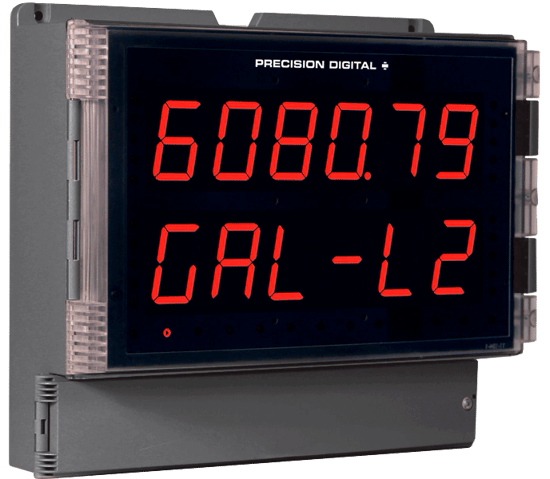

Typically, the upper line displays the PV and the lower line displays the tag.
Features- Large 1.80" Digits
- Dual-line 6-digit Display
- Readable from up to 100' - 30 Meters Away
- Superluminous Sunlight Readable Display
- NEMA 4X, IP65 Rated Field Mountable Enclosure
- Operating Temperature Range of -40° to 65° C / -40° to 150° F
- Modbus RTU Master, Slave, or Snooper Mode
- Poll and Display Up to 16 Process Variables
- Addition, Difference, Average, Multiplication, Division, Minimum, Maximum, Weighted Average, Ratio, Concentration, & More
- Universal 85 to 265 Vac, or 12 to 24 Vdc Input Power Models
- 2 or 4 Relays + Isolated 4-20 mA Output Options
- Onboard USB & RS-485 Serial Communication Options
- Program the Meter from a PC with Onboard USB and Scanview
Specifications
Manufacturer
Input / Output
- Modbus RTU over RS-485, Two analog Inputs (4-20 mA, ± 10 V)
Display
- Two lines with 1.8” (46 mm) High Digits, Red LEDs, 6 Digits per line (-99999 to 999999), with Lead Zero Blanking
Display Intensity
- Eight user selectable intensity levels
Display Update Rate
- 5/second (200 ms)
Overrange
- Display flashes 999999
Underrange
- Display flashes -99999
Programming Methods
- Four Programming Buttons, digital inputs, PC and ScanView Software, or Modbus registers
Maximum / Minimum Display
- Max./Min. Readings reached by the process are stored until reset by the user or until power to the meter is turned off.
Password Restrict Modifications
- Pass 2: Allows use of function keys, digital inputs and editing set/reset Points
- Pass 3: Restricts all Programming, function keys, and digital inputs
- Pass 1: Allows use of function keys and digital inputs
Power Options
- 12-24 Vdc ± 10 %, 15 W max
- 85-265 Vac 50/60 Hz, 90-265 Vdc, 20 W max
- Powered over USB for configuration only
Isolated Transmitter Power Supply
- Terminals P+ & P-: 24 Vdc ± 10 %. 12-24 Vdc Powered models selectable for 24, 10, or 5 Vdc Supply (Internal P+/P- switch). 85-265 Vac models rated @ 200 mA max., 12-24 Vdc Powered models rated @ 100 mA max., @ 50 mA max. for 5 or 10 Vdc Supply.
Non-Volatile Memory
- All programmed settings are stored in non-volatile memory for a minimum of ten years if power is lost.
Fuse
- Required External Fuse: UL Recognized, 5 A max., Slow Blow, up to 6 metres may share one 5 A fuse
Isolation
- 4 kV Input/Output-to-Power Line, 500 V Input-to-Output or Output-to-P+ Supply
Overvoltage Category
- Installation Overvoltage Category II: Local level with smaller transient overvoltages than Installation Overvoltage Category III.
Environmental
- Operating Temperature Range: -40 to 150° F (-40 to 65° C)
- Storage Temperature Range: -40 to 185° F (-40 to 85° C)
- Relative Humidity: 0 to 90 % Non-Condensing
Connections
- Removable and integrated screw terminal blocks accept 12 to 22 AWG wire
Enclosure
- UL Type 4X, IP65 rated. Polycarbonate & glass blended plastic Case, color: gray. Includes four PG11 through-hole conduit openings, with two factory installed PG11, IP68, Black nylon threaded hole plugs with backing nuts.
Wall Mounting
- Four (4) mounting holes provided for mounting meter to wall
Pipe Mounting
- Optional Pipe Mounting Kit (PDA6260) Allows for Pipe Mounting. Sold Separately.
Tightening Torque: Removable Screw Terminals
- Digital I/O and RS-485 Terminals: 2.2 lb-in (0.25 Nm)
- Removable Screw Terminals: 5 lb-in (0.56 Nm)
Overall Dimensions
- 10.63” x 12.59” x 4.77” (270 mm x 319.7 mm x 121.2 mm) (H x W x D) Weight: 6.10 lbs (2.76 kg)
UL File Number
- UL & C-UL Listed. E160849, 508 Industrial Control Equipment.
Warranty
- 3 Years Parts & Labor
USB Connection
- Compatibility: USB 2.0 Standard, Compliant Connector Type: Micro-B receptacle
- USB Port
- Windows® 98/SE, ME, 2000, Server 2003/2008, XP 32/64-Bit, Vista 32/64-Bit, Windows® 7 32/64-Bit, Windows® 10 32/64-Bit
- USB A Male to Micro-B Cable
