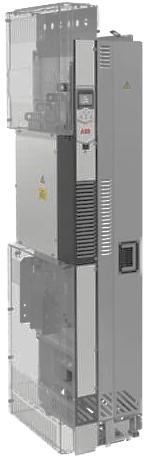

ACS880-04/-04F/-04XT/-04FXT Single Drive Module

Manufacturer: ABB
Images are representations only.

ACS880-04/-04F/-04XT/-04FXT Single Drive Module

Manufacturer: ABB
Request a Quote Favorite
Specifically designed for machine builders and systems integrators.

You can build flexibility, simplicity into your own cabinet.

Made as a bookshelf and a flat variant, they can easily be pushed inside the cabinet using a pedestal on wheels.

All built on ABB’s common all-compatible drive architecture.

Simplifying operation without limiting your possibilities.
Features
  • Power range 200 to 710 kW
  • Single drive modules for flexible and optimized cabinet assembly
  • IP00, IP20 enclosure classes
  • Direct torque control (DTC) as standard
  • Integrated safety including STO as standard
  • Intuitive control panel with USB port
  • EMC filter, choke and brake chopper
  • Supports a wide range of fieldbus protocols
  • Flexible I/O and encoder options

Specifications

Manufacturer

Voltage & Power Range

  • Mains: 3-Phase, UN3 380-415 V, +10 %/-15 %
  • Mains: 0.55 to 3,200 kW
  • Mains: 3-Phase, UN7 525-690 V, +10 %/-15 %
  • Mains: 3-Phase, UN5 380-500 V, +10 %/-15 %
  • Motor: 3-Phase output Voltage 0 to UN2 /UN3 /UN5 /UN7

Frequency

  • Motro: 0 to ± 598 Hz
  • Mains: 50/60 Hz ± 5 %

Efficiency

  • 98 % at nominal Power

Motor Control

  • Direct torque Control (DTC)

Certifications & Approvals

  • TÜV
  • CSA
  • RCM, EAC
  • cULus
  • EMC
  • ATEX
  • LVD
  • CE
  • RoSH

Storage / Transport Temperature

  • -40° to 70° C

Operating Temperature

  • -15° to 40° C as Standard
  • 40° to 55° C with Derating of 1 %/1° C

Cooling Type

  • Dry Clean Air Cooling

Altitude

  • 0 to 1,000 m without derating
  • 1,000 to 4,000 m without derating with derating of 1 %/ 100 m

Humidity

  • 5 % to 95 % Relative Humidity, no condensation

Environmental Protection

  • IP00
  • IP20
