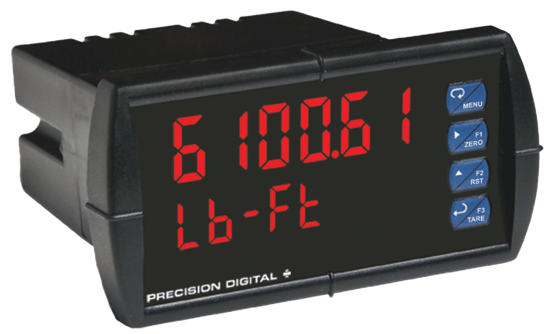

PD6100 ProVu Strain Gauge, Load Cell & mV Digital Panel Meter
Manufacturer: Precision DigitalThe PD6100 is a member of the ProVu series of 1/8 DIN digital panel meters that accepts strain gauge & load cell inputs and mV signals up to 300 mV (unipolar) and ± 250 mV (bipolar) for weight indication and force measurement applications.
The PD6100's dual-line display and powerful dual-scale capability allows the measurement to be displayed in two different units of measure; gallons (volume) could be displayed on the upper line while pounds (weight) is displayed on the lower line, for example. Another use for the PD6100's dual-line display is to simply show the units of measure on the bottom line.
The PD6100 stain gauge meter includes a 5 or 10 VDC power supply to drive the sensors and can be equipped with up to four internal relays and one 4-20 mA output.
Features- 15, 30, 150, 300 mV Unipolar Input Ranges
- ±15, ±25, ±150, ±250 mV Bipolar Input Ranges
- Selectable 5 or 10 VDC Sensor Excitation
- Capture or Programmable Tare Feature
- Auto-Zero Feature Eliminates Zero Drift
- Ratiometric Operation
- Max/Min or Peak/Valley Hold Feature
- Dual-Scale Feature – Single Input
- Rounding Function 1, 2, 5, 10, 20, 50, or 100
- Programmable Display & Function Keys
- USB, RS-232, & RS-485 Serial Communication Options
- Modbus RTU Communication Protocol Standard
- Optional SunBright Display Models for Outdoor Applications
- Onboard USB and MeterView® Pro Programming Software
Specifications
Manufacturer
Display
- Upper display: 0.60" (15 mm) high
- Lower display: 0.46" (12 mm) high
- Both are 6 digits (-99999 to 999999), red LEDs
Display Intensity
- Eight intensity levels
Display Update Rate
- 5/second (200 ms)
Front Panel
- NEMA 4X, IP65
Programming Methods
- Four front panel buttons, digital inputs, PC and MeterView Pro software, Modbus registers
Connection
- Removable screw terminal blocks accept 12 to 22 AWG wire, RJ45 for external relays, digital I/O, and serial communication adapters
Power Options
- 85-265 VAC 50/60 Hz, 90-265 VDC, 20 W max
- Optional model with 12-24 VDC ±10%, 15 W max
Environmental
- Storage: -40 to 85°C
- Humidity: 0 to 90% non-condensing
- Operating: -40° to 65° C (-40° to 150° F)
Enclosure
- 1/8 DIN, high impact plastic, UL 94V-0, color: black
Mounting
- 1/8 DIN panel cutout required: 3.622" x 1.772" (92 mm x 45 mm)
- Two panel mounting bracket assemblies are provided
Approvals & Certifications
- CE
- cULs
Isolation
- 500 V input-to-output (powered by external supply)
- 4 kV Input/Output-to-Power-Line
Dimensions (W x H x D)
- 4.68" x 2.45" x 5.64" (119 mm x 62 mm x 143 mm)
Weight
- 9.5 oz (269 g)
Communication
- Modbus® RTU (Slave Only)
