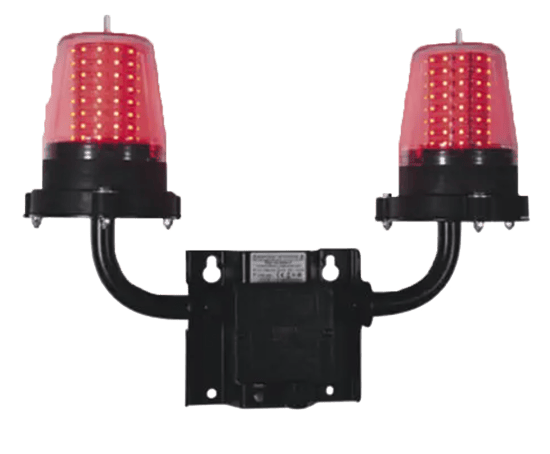

Weatherproof Obstruction Light SkyLine Alpha 4

Manufacturer: EATON | FHF

Weatherproof Obstruction Light SkyLine Alpha 4

Manufacturer: EATON | FHF
The requirements of the ICAO (International Civil Aviation Organization) prescribe that aviation obstructions be clearly marked with corresponding certified obstruction lights.

The obstruction lights Skyline Alpha correspond to these requirements according to ICAO Annex 14, Chapter 6, Table 6-3.

Skyline Alpha is designed on the basis of LED, thus enabling almost maintenance-free operation, and achieves an extremely long lifetime.

Four different models are available for the various mounting situations and are naturally available in the commonly available voltages 24 VDC and 115/230 VAC.
Features
  • Marking of aviation obstructions according to ICAO Annex 14
  • LED technology
  • Corrosion free
  • Diversity of variants
  • Long lifetime
  • Alpha 4R with redundancy circuit and easy monitoring

Specifications

Manufacturer

Housing

  • Elastic TPF (solid rubber)

Protection degree

  • IP 65 according to IEC 60529 Protection class II

Cable entry

  • 6-8 mm, rubber sealed (Alpha 2 – 4 prewired)

Operating position

  • Cable entry downwards

Operating mode

  • Continuous

Temperature range

  • Operation -20°C to +50°C
  • Storage -30°C to +70°C

Current consumption

  • 24 VDC 800 mA
  • 120 VAC 140 mA
  • 230 VAC 70 mA

Weight

  • Alpha 1 ca. 0.45 kg
  • Alpha 2 ca. 1.60 kg
  • Alpha 3 ca. 2.20 kg
  • Alpha 4 ca. 4.50 kg
