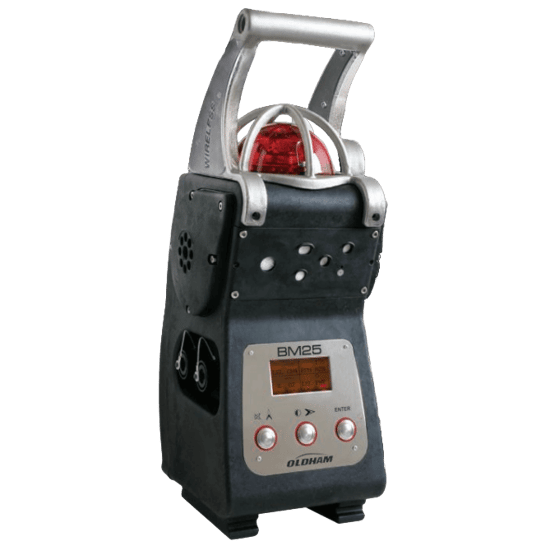

BM 25 Transportable Multi-Gas Area Monitor

Manufacturer: Teledyne| Detcon
Detcon Transportable Multi-Gas Area Monitor, BM 25
Detcon Transportable Multi-Gas Area Monitor, BM 25
Images are representations only.

BM 25 Transportable Multi-Gas Area Monitor

Manufacturer: Teledyne| Detcon
Request a Quote Favorite
The BM 25 packs the benefits of a fixed system area monitor into a rugged, user-friendly and transportable instrument.

It was designed to detect one to five gases for mobile or temporary work applications, team protection, area surveillance or places where fixed detection systems are not suitable.

Specifications

Manufacturer

Alarm

  • 103 dB at 1 Meter
  • Ultrabright LED Beacon

Approvals & Certifications

  • ATEX Ex ia IIC T4 Ga, Ex ia I Ma
  • Class I, Div. 1, Grade A, B, C, D, Ex ia D IIC T4
  • IEC Ex
  • ISO 9001: 2008, ISO 14001: 2004

Battery Life

  • 4.5 Hours Recharge Time
  • Up to 170 Hours

Communication

  • Data Logging: 200,000 Measurements

Display

  • Graphic LCD

Environmental Protection

  • IP66

Frequency

  • 2.4 GHz

Humidity

  • 1 to 99 % Relative Humidity - Sensor Dependent

Indication

  • Ultrabright LED Beacon Visible 360° - Visual Alaram

Measuring Range

  • 0 to 1 ppm in 0.01 ppm Increments - Phosphine, Arsine, Ozone, Phosgene, Hydrazine
  • 0 to 1,000 ppm in 1 ppm Increments - Carbon Monoxide, Ammonia
  • 0 to 10 ppm in 0.1 ppm Increments - Chlorine, Hydrogen Cyanide, Fluorhydric Acid
  • 0 to 100 ppm in 1 ppm Increments - Hydrogen Sulfide
  • 0 to 100 % Lower Explosive Limit (LEL) in 1 % Increments - Combustible Gases, Methane, Propane, Butane, LPG, Isobutane, Ethanol, Pentane (Infrared)
  • 0 to 2,000 ppm in 1 ppm Increments - Hydrogen, Isobutylene
  • 0 to 3 ppm in 0.01 ppm Increments - Chlorine Dioxide
  • 0 to 30 ppm in 0.1 ppm Increments - Sulfur Dioxide, Ethylene Oxide, Nitrogen Dioxide, Hydrogen Chloride
  • 0 to 30 % Volume in 0.1 % Increments - Oxygen
  • 0 to 300 ppm in 1 ppm Increments - Nitric Oxide
  • 0 to 5 % of Volume in 0.1 % Increments - Carbon Dioxide
  • 0 to 50 ppm in 0.1 ppm Increments - Silane

Media

  • Gas

Operating Temperature

  • -20° to 50° C (-4° to 122° F) - Sensor Dependent

Operating Time

  • 0 to 170 Hours (NiMH)

Power

  • 100 mW

Range

  • Wireless Range: 3168 feet (968 metres)

Sensor, Probe Type

  • Catalytic Diffusion - Combustible Gas
  • Electrochemical - Oxygen & Toxic Gases
  • Infrared - Methane, Propane, Butane, Isobutane, LPG, Ethanol, Pentane & Carbon Dioxide
  • Photo Ionization Detector (PID) - Isobutylene
