TMS0600 Slurry Liquid Flow Meter

Manufacturer: Turbines, Inc.

TMS0600 Slurry Liquid Flow Meter

Manufacturer: Turbines, Inc.

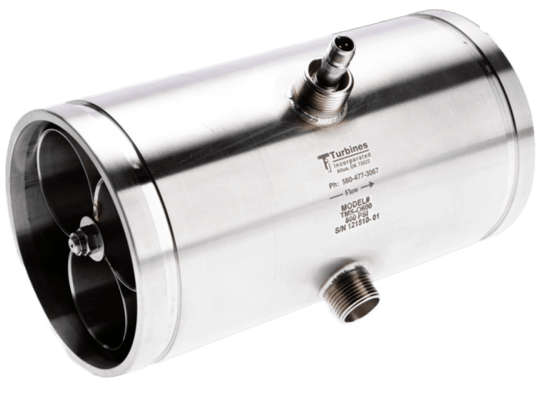

The TMS0600 Turbine Flow Meter delivers accurate measurement even in rugged conditions, including water, water-sand, mud, and cement slurry.

Designed specifically for harsh environments, the TMS0600 meter provides durability and longevity in abrasive and slurry applications to deliver accurate, reliable results. This meter has a flow range from 200 to 2,900 GPM, provides +/- .5% standard accuracy, and is repeatable to +/- 0.10% over the entire flow range. The TMS0600 features stainless steel construction and Victaulic® end connections.

Specifications

Manufacturer

Repeatability

  • ± 0.1 % Over Flow Range

Linearity

  • ± 0.5 % Over Flow Range

Operating Temperature

  • -100° F to +300° F

Connection

  • Vuctaulic®

Operating Pressure

  • Up to 800 psig

Flow Range

  • 200 to 2,900 GPM

Electrical Output

  • 30 mV p-p at Min. Flow

Materials

  • Meter Body: 316 Stainless Steel
  • Rotor Supports: 316 Stainless Steel
  • Rotor: 17-4 PH Stainless Steel
  • Bearings: Tungsten Carbide

TI Certifications

  • ISO 9001
