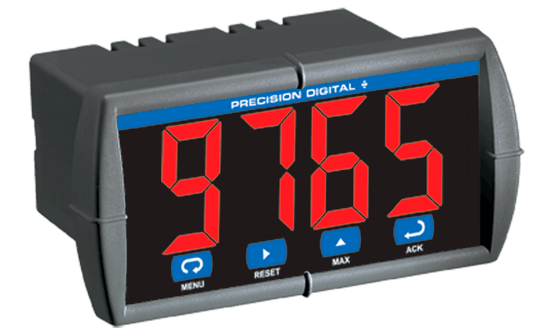

The PD765 Trident digital panel meter is one of the most versatile digital panel meters on the market and will satisfy a wide variety of process and temperature applications. The Trident can be field programmed to accept process voltage (0-5 V, 1-5 V, etc) and current (4-20 mA) inputs, 100 Ohm RTDs, and the four most common thermocouples.

One of the Trident’s most useful features is its ability to provide 24 VDC to power the transmitter’s 4-20 mA signal. It is housed in a shallow-depth, 1/8 DIN enclosure that features a NEMA 4X front panel and convenient mounting hardware.

There are two power options for the Trident: 85-265 VAC or 12-36 VDC and the AC powered version can provide 24 VDC to power the transmitter if needed. Programming and setup can be performed with the four front panel pushbuttons, free MeterView software or using the Copy function.

Two relays and isolated 4-20 mA output options increase the utility of the Trident meter. The relays can be used for alarm or control applications. The 4-20 mA output provides an isolated retransmission of the input signal; especially useful for temperature inputs like thermocouples and RTDs.

The display height on the standard Trident meter is 0.56" (14.2 mm).

The intensity of the display on both versions of the Trident can be adjusted to compensate for various lighting conditions, including direct sunlight.

• 1/8 DIN Digital Panel Meter with NEMA 4X, IP65 Front
• 4-20 mA, ± 10 V, TC & RTD Field Selectable Inputs
• Easy Field Scaling in Engineering Units without Applying an Input
• Full 4-Digit Display, 0.56" (14.2 mm) or 1.20" (30.5 mm)
• Shallow Depth Case Extends Only 3.6" (91 mm) Behind Panel
• Isolated 24 VDC @ 200 mA Transmitter Power Supply Option (AC Powered Models Only)
• 2 Relays + Isolated 4-20 mA Output Options
• Free PC-Based MeterView Programming & Monitoring Software
• No Assembly Required
• Sunlight Readable Displa
• Operating Temperature Range: -40 to 65 °C (-40 to 149 °F)
• UL & C-UL Listed. E160849; UL 508 Industrial Control Equipment
• Input Power Options: 85-265 VAC / 90-265 VDC or 12-36 VDC / 12-24 VAC
• Duplex Pump Controller with Alternation Capability
• External Contacts for Remote Button Operation (Trident X2 Only)
• USB, RS-232, & RS-485 Serial Communication Adapters Options
• Modbus RTU Communication Protocol Standard
• Copy Meter Settings to Other Trident Meters
• Password Protection
• Max/Min Display
• High & Low Alarms with Multiple Reset Actions
• Wide Assortment of NEMA 4X Enclosures for up to Ten Meters
• Light/Horn & Button Accessory for Trident X2
• Control Station Accessory for Remote Operation of Trident X2
• Stainless Steel Sun Hood Accessory Available
• 3-Year Warranty
