IR-642 Carbon Dioxide Sensor

Manufacturer: Teledyne| Detcon

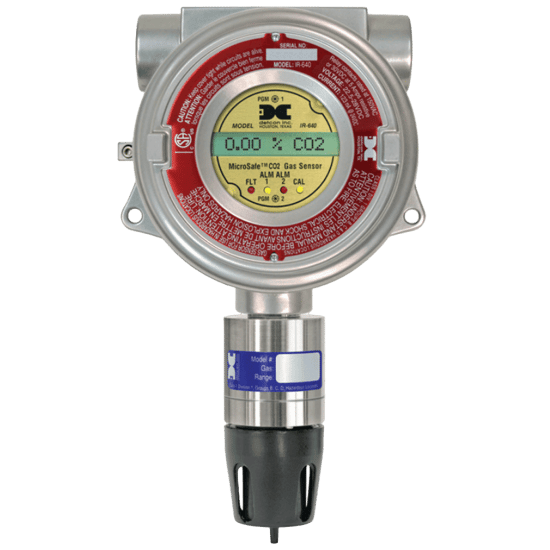

Detcon Carbon Dioxide Sensor, IR-642
Images are representations only.

IR-642 Carbon Dioxide Sensor

Manufacturer: Teledyne| Detcon
Request a Quote Favorite
Detcon Model IR-642 sensors are non-intrusive “Smart” sensors designed to detect and monitor Carbon Dioxide.

Available ranges of detection are 0-10%, 0-25%, 0-50%, and 0-100% by volume.

The sensor assembly consists of a miniature infrared optical sensor in a stainless steel housing that includes a splashguard with integral cal port, a plug-in control transmitter circuit, a base connector board and an explosion proof enclosure.

Specifications

Manufacturer

Accuracy

  • ± 5 % of Full Scale

Approvals & Certifications

  • CSA: Class I, Div. 1, Groups B, C, D
  • NRTL: Class I, Div. 1, Groups B, C, D

Communication

  • Modbus Via RS-485

Consumption

  • < 3 W at 24 Vdc

Display

  • Backlit LCD Display

Electrical Connectors

  • Junction Box

Enclosure, Body Material

  • Stainless Steel

Environmental Protection

  • Explosion-proof
  • IP66
  • NEMA 4X

Humidity

  • 0 to 99 % Relative Humidity, Non-Condensing

Indication

  • LED Indicators for Fault & Cal Status

Input

  • 22.5-28 Vdc

Materials of Construction

  • 316 Stainless Steel - Junction Box
  • Aluminum - Junction Box

Measuring Range

  • 0 to 10 % by Volume
  • 0 to 100 % by Volume
  • 0 to 25 % by Volume
  • 0 to 50 % by Volume

NPT Connection

  • 3/4” NPT Female

Operating Temperature

  • -40° to 75° C (-40° to 167° F)

Output

  • 4-20 mA DC (Linear)

Relay Output

  • 3 Relays (2 Alarm, 1 Fault)

Response Time

  • T50 < 15 seconds
  • T90 < 40 seconds

Sensor, Probe Type

  • Non-Dispersive Infrared Optical - Sensor

Zero Offset

  • < 0.05 % Per Year
