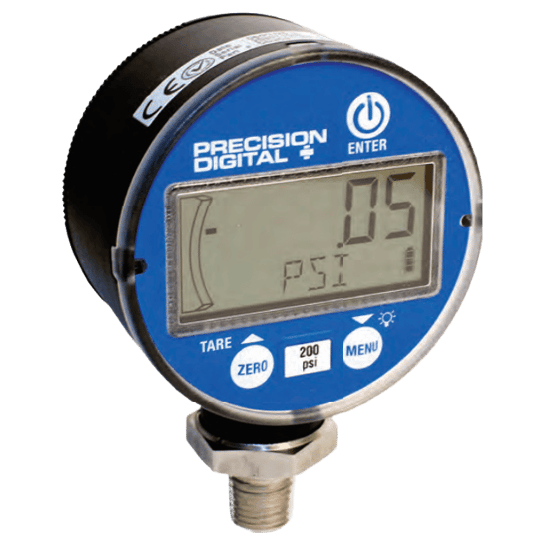

PD205/PD206 General Purpose Digital Pressure Gauge

Manufacturer: Precision Digital

PD205/PD206 General Purpose Digital Pressure Gauge

Manufacturer: Precision Digital
The PD205 digital pressure gauge offers 0.5% accuracy. The PD206 offers even greater accuracy at 0.25%.

The 1/2" 5-digit display provides optimum resolution.

A laser-welded stainless steel sensor and socket make this product suitable for a wide variety of media in difficult industrial applications.

The IP67 rating makes this product suitable for demanding applications, such as equipment wash down.

These gauges come standard with many features such as nine pre-programmed units of measure, tare, max/min (peak/valley), programmable custom engineering units, and pressure ranges up to 25,000 psi.

The menu style navigation simplifies programming.

The extended battery life (>2,000 hours) minimizes maintenance requirements.
Features
  • Vacuum to 25,000 psi
  • 0.25% or 0.50% Terminal Point Accuracy
  • 5-Digit, 0.48" (12.2 mm) LCD
  • 20-Segment Bargraph Display
  • Nine Engineering Units
  • IP67 Weather-Proof Enclosure
  • CE & RoHS Compliant
  • Battery powered

Specifications

Manufacturer

Accuracy

  • 0.25 % - PD206
  • 0.5 % - PD205

Approvals & Certifications

  • CE
  • RoHS

Battery Life

  • > 2,000 Hours

Display

  • 5-Character Alphanumeric
  • 5-Digit LCD

Enclosure, Body Material

  • ABS
  • Polycarbonate

Environmental Protection

  • IP67

Humidity

  • 0 to 90 % Non-Condensing

Mounting

  • Stem

NPT Connection

  • 1/4” NPT

Operating Temperature

  • -20° to 60° C (-4° to 140° F)

Power Options

  • Two AA Alkaline Batteries

Pressure Range

  • bar: -1 to 1,724
  • Inches Hg: -30 to 0
  • kPa: -100 to 172,400
  • psi: -14.5 to 25,000

Wetted Materials

  • 17-4 PH
  • 316L Stainless Steel Socket
