PD6080 ProVu Decimal Display Modbus Scanner With Dual Analog Inputs
Manufacturer: Precision Digital
Images are representations only.

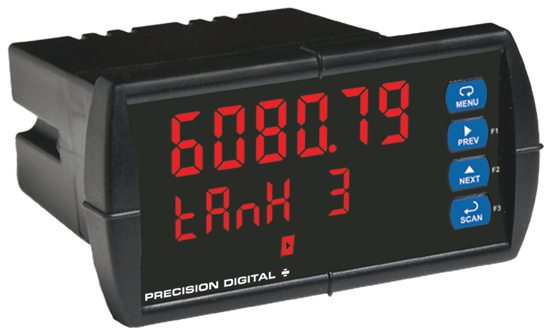

PD6080 ProVu Decimal Display Modbus Scanner With Dual Analog Inputs
Manufacturer: Precision DigitalThe ProVu PD6080 Super Snooper Modbus® scanner is a multi-purpose display and controller capable of scanning up to 16 Modbus process variables and accepts two analog process inputs.
The scanner can be programmed as a Modbus RTU master, slave, or snooper.
It is the ideal display for Modbus multivariable transmitters or for existing Modbus networks with transmitters in need of an easy-to-read and conveniently located remote display.
As a master, the PD6080 can read up to 16 Modbus registers on up to 16 Modbus devices and automatically alternate each of these process variables - PVs on the dual-line display along with a unit and tag for each.
In snooper mode, the PD6080 can read any Modbus variable being polled by a master, which allows you to easily add a display into an existing Modbus network.
Like all ProVu meters, the PD6080 includes UL / C-UL listing and CE marking, a NEMA 4X front, and AC or DC power options.
Powerful math functions may be applied to the analog or Modbus inputs, such as addition, difference, average, and ratio.
Features- Modbus® RTU Master, Slave, or Snooper Mode
- Poll and Display up to 16 Process Variables
- Large Dual-Line 6-Digit Display, 0.60" & 0.46"
- SunBright Display Standard
- 32-Point, Square Root, or Exponential Linearization
- Addition, Difference, Average, Multiplication, Division, Min, Max, Weighted Average, Ratio, Concentration, & More
- Type 4X, NEMA 4X, IP65 Front
- Universal 85-265 VAC, or 12-24 VDC Input Power Models
- 12-36 VDC/12-24 VAC Power Option
- Onboard USB and ScanView Programming Software
Specifications
Manufacturer
Output
- Modbus RTU over RS-485, Two analog inputs (4-20 mA, ±10 V)
Display
- Upper display: 0.60" (15 mm) high
- Lower display: 0.46" (12 mm) high
- Both are 6 digits (-99999 to 999999), red LEDs
Display Intensity
- Eight user selectable intensity levels
Display Scan Rate
- Master/Snooper: 1/second to once every 99.9 seconds. Slave: Dependent on master device (e.g. PLC)
Front Panel
- IP65
- NEMA 4X
Power Options
- 85-265 VAC 50/60 Hz, 90-265 VDC, 20 W max
- 12-24 VDC ± 10%, 15 W max. Powered over USB for configuration only
Enclosure
- 1/8 DIN, high impact plastic, UL 94V-0, color: black
Isolation
- 4 kV Input/Output-to-Power-Line
- 500 V Input to Output or Output to P+ Supply
Connections
- Removable screw terminal blocks accept 12 to 22 AWG wire, RJ45 for external relays, digital I/O, and serial communication adapters
Mounting
- 1/8 DIN panel cutout required: 3.622" x 1.772" (92 mm x 45 mm)
- Two panel mounting bracket assemblies are provided
Environmental
- Operating: -40° to 65° C (-40° to 150° F)
- Storage: -40 to 85°C
- Relative humidity: 0 to 90% non-condensing
Approvals & Certifications
- CE
- cULs
Overall Dimensions (W x H x D)
- 4.68" x 2.45" x 5.64" (119 mm x 62 mm x 143 mm)
Weight
- 9.5 oz (269 g)
