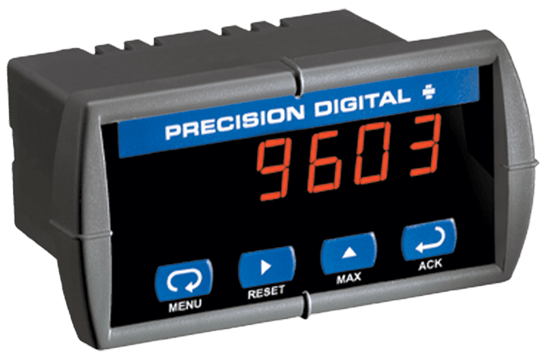

PD603 Sabre P Low-Cost Process Digital Panel Meter
Manufacturer: Precision DigitalThe Sabre P model PD603 is an easy to use 1/8 DIN digital panel meter that has all the important features customers want in a process input meter.
These features include field selectable 0-20 mA, 4-20 mA, 0-5, 1-5, or ±10 V inputs, NEMA 4X front panel, UL and C-UL Listing for 508 Industrial Control Equipment, and optional 24 VDC power supply for the transmitter.
The meter is easily programmed and scaled with its four front panel buttons and simple menu structure.
Features- 0-20, 4-20 mA, 0-5, 1-5, 0-10, ±10 V Inputs
- Input Current Overload Protection
- NEMA 4X, IP65 Front
- Shallow Depth 1/8 DIN Case 3.6” Behind Panel
- 4 Digit Display, 0.56” / 14 mm High, Red LEDs
- Easy Front Panel Programming
- Scale without a Signal Source
- Calibrate with a Signal Source
- Maximum/Minimum Display
- Universal Power Supply 85-265 Vac
- 12 to 36 Vdc / 12 to 24 Vac Power Option
- 24 Vdc at 200 mA Transmitter Supply Option
Specifications
Manufacturer
Approvals & Certifications
- UL
Display
- 4-Digit LED
Enclosure, Body Material
- High Impact Plastic
Environmental Protection
- IP66
- NEMA 4X
Humidity
- 0 to 90 %
Input
- 4-20 mA
Isolation
- 4 kV Input/Output-to-Power-Line
- 500 V Input to Output or Output to P+ Supply
Mounting
- 1/8" DIN
Operating Temperature
- 0° to 65° C (32° to 150° F)
Operating Voltages
- 50/60 Hz
Power
- 20 W
Power Supply
- 85-265 Vac
- 90-265 Vdc
Storage Temperature
- -40° to 85° C (-40° to 185° F)
