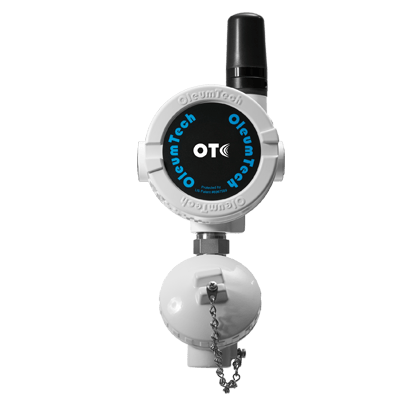

Wireless Thermocouple Transmitter (TC1)
Manufacturer: OleumTech
Images are representations only.
The OleumTech® OTC Wireless Thermocouple Transmitter supports third-party type K thermocouple sensors for monitoring extreme heat process conditions including flares, kilns, and gas turbines.
The SM-TC1 features 24-bit analog to digital conversion (ADC) and provides reliable method of measuring temperature.
The SM-TC1 provides a junction box and wiring terminal board for accepting a third-party thermocouple sensor.
The temperature output can be reported in Fahrenheit, Celsius, or both.
This ultra-low-power transmitter is powered by a replaceable battery pack that provides up to a 10-year life.
The field-proven wireless transmitter communicates with an assigned wireless gateway within the OTC Wireless Sensor and I/O Network, creating a highly scalable network, accommodating virtually any I/O requirement.
The OleumTech wireless transmitter is certified for use in Class I, Division 1 (Zone 0) hazardous locations.
It is Intrinsically Safe, designed not to cause a spark, and can be serviced without being removed from a process.
Features- Supports type K thermocouple sensors
- Single temperature input, 24-bit ADC
- Up to a 10-year battery life
- Self-contained, rugged design
- Installs in minutes
- IP66, -40 °C to 70 °C (-40 ˚F to 158 ˚F)
- 900 MHz / 915 MHz / 2.4 GHz / 868 MHz
- Secure AES encryption
- Class I, Division 1 (Zone 0)
- Intrinsically Safe
Specifications
Manufacturer
Device Functionality
- Temperature Sensing Wireless Transmitter Using A Thermocouple Sensor
Configuration
- Standard RS-232 Serial with BreeZ Software for PC
Wireless Communications
- Radio Band: ISM Band (License-Free)
- 900 MHz / 915 MHz: FHSS, FSK, AES Encryption 256-bit (900 MHz), 128-bit (915 MHz)
- 2.4 GHz: DSSS, AES Encryption 128-bit
- 868 MHz: LBT-AFA, AES Encryption 128-bit
Certifications & Approvals
- FCC Part 15 (USA), IC ICES-003 (Canada), ACMA (Australia)
- AS/NZS CISPR 32 (Australia), EN 55032 & EN 55024 (EU)
- Class I, Div. 1, Groups A, B, C, D T3C, Ex ia IIC T3
- Class I, Zone 0, AEx ia IIC T3
- ATEX: Sira 13ATEX2142X, Ex ia IIC T3 Ga, II 1 G
- IECEx: SIR 13.0054X, Ex ia IIC T3 Ga
Connection Fitting
- 3/4" NPT Female
Enclosure Casing Material
- Type 4X Aluminum
